* Product solution Model number: BAKTH-ITL0030050150-01

* Product Solution: BQ4050/BQ40Z50

* Compatibleinterface: SMBUS

* Battery Type: LiFe-PO4/Li-ion

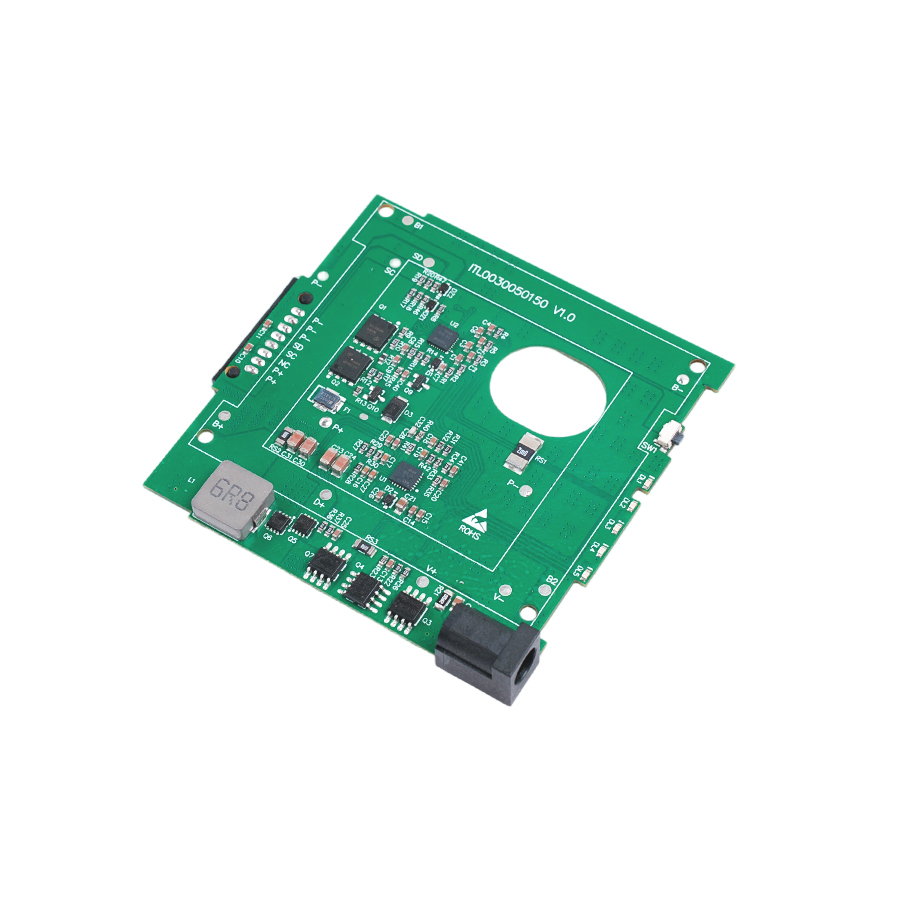

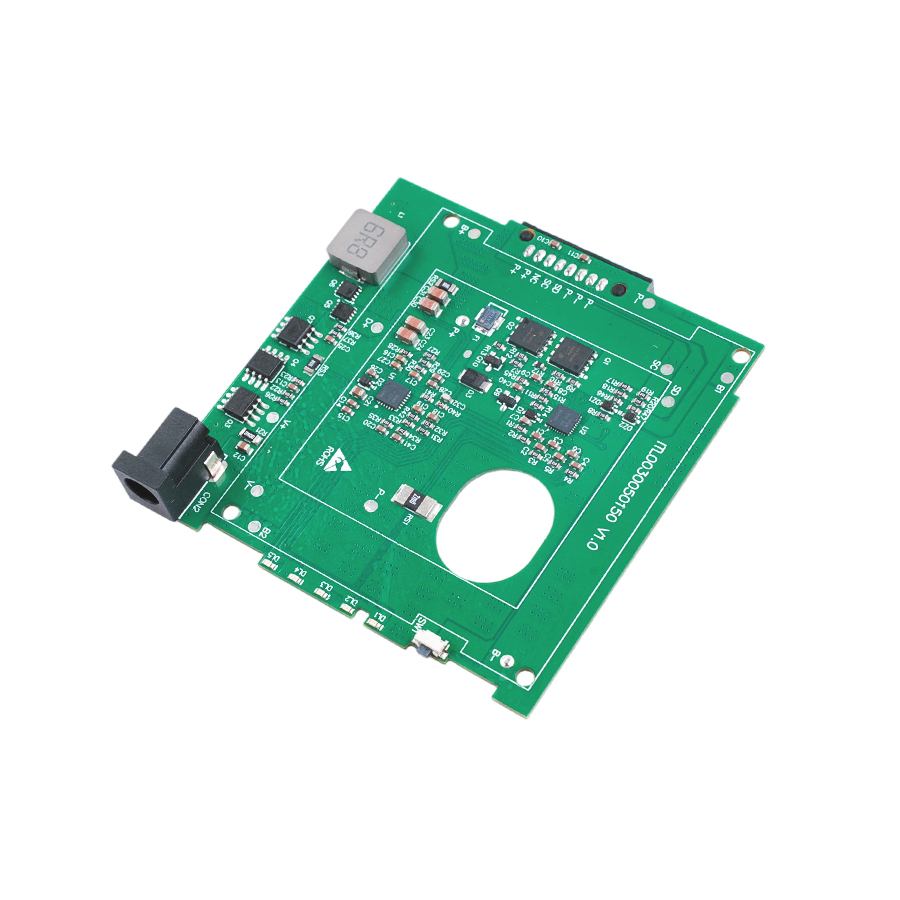

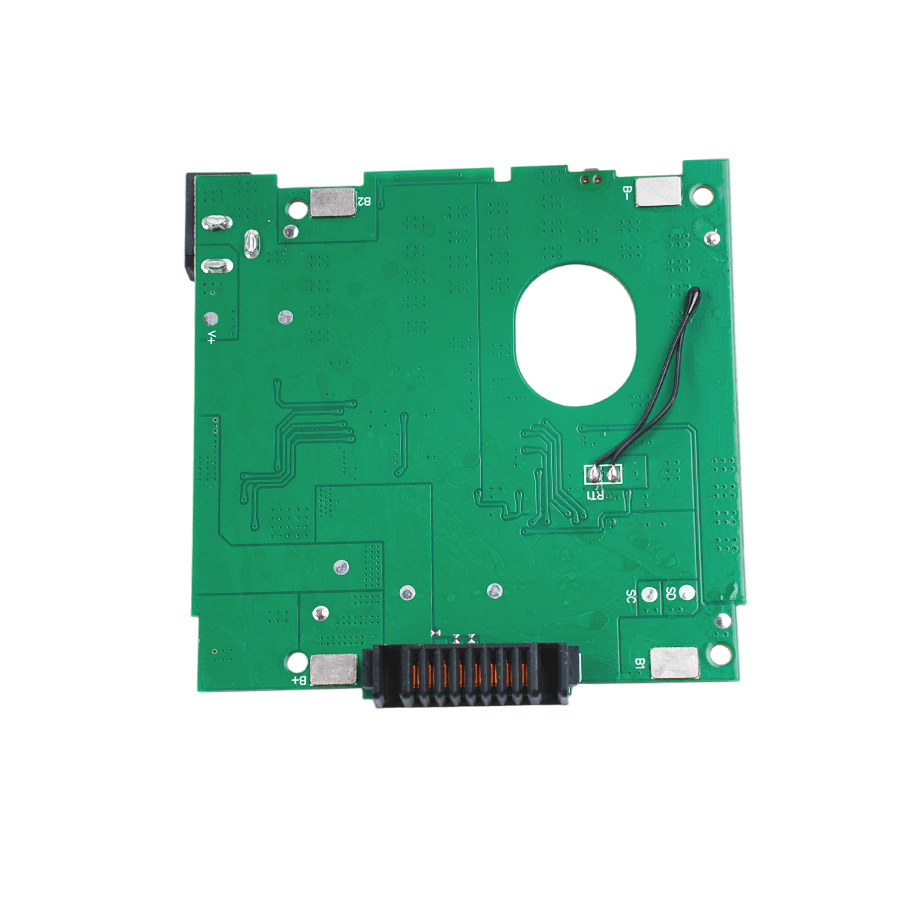

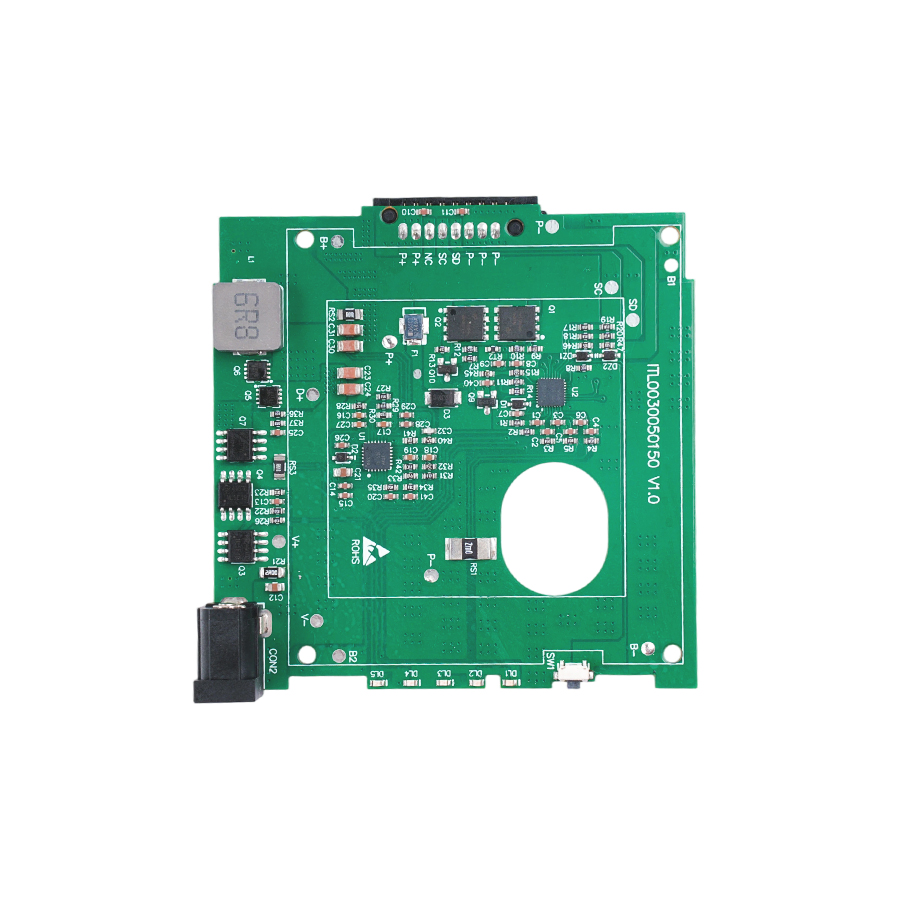

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.230V±0.025V

* Over Discharge Detection Voltage(Cell): 2.800V±0.025V

* OCD1 Over Current Discharge: 6.50A±0.5A

* OCD2 Over Current Discharge: 8.0A±0.5A

* OCC1 Over Current Charge: 2.20A±0.5A

* OCC2 Over Current Charge: 3.50A±0.5A

* Discharging Temperature:  -19℃~63℃

* Charge Temperature:  -37℃~48℃

* Max.Discharge Current: 3A

* Max.charge Current: 2A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 73*72.7*12.76mm
