* Product solution Model number: BAKTH-ITL0030080151-01

* Product Solution: BQ4050/BQ40Z50

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

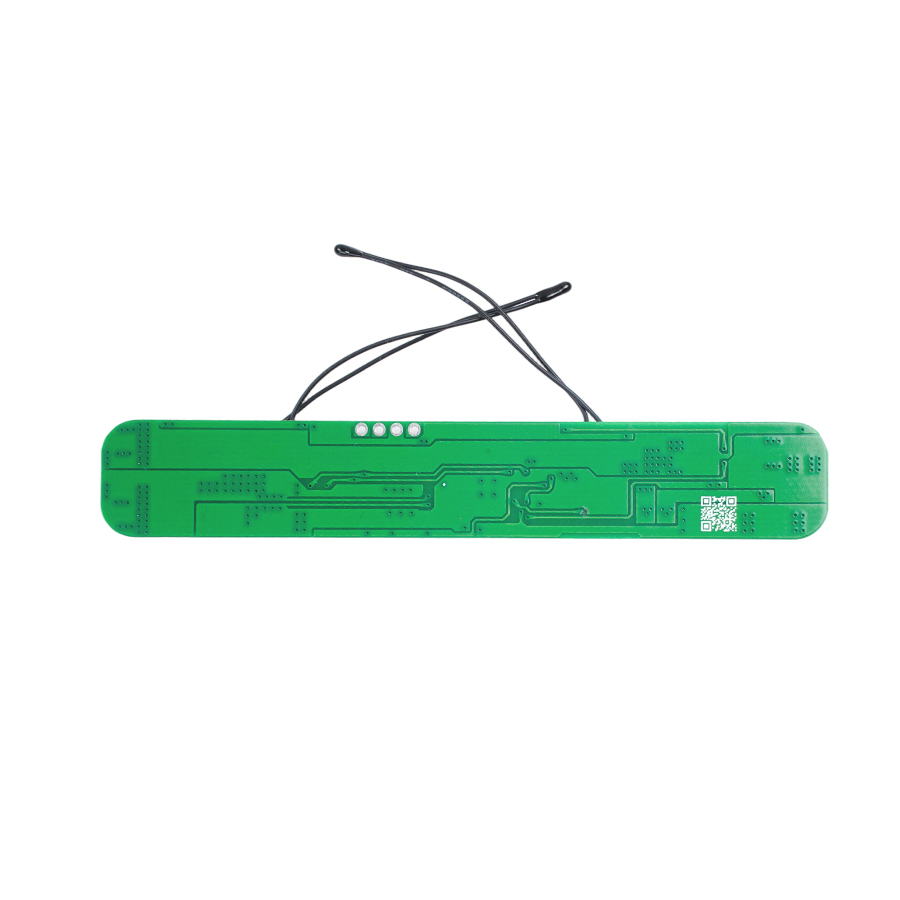

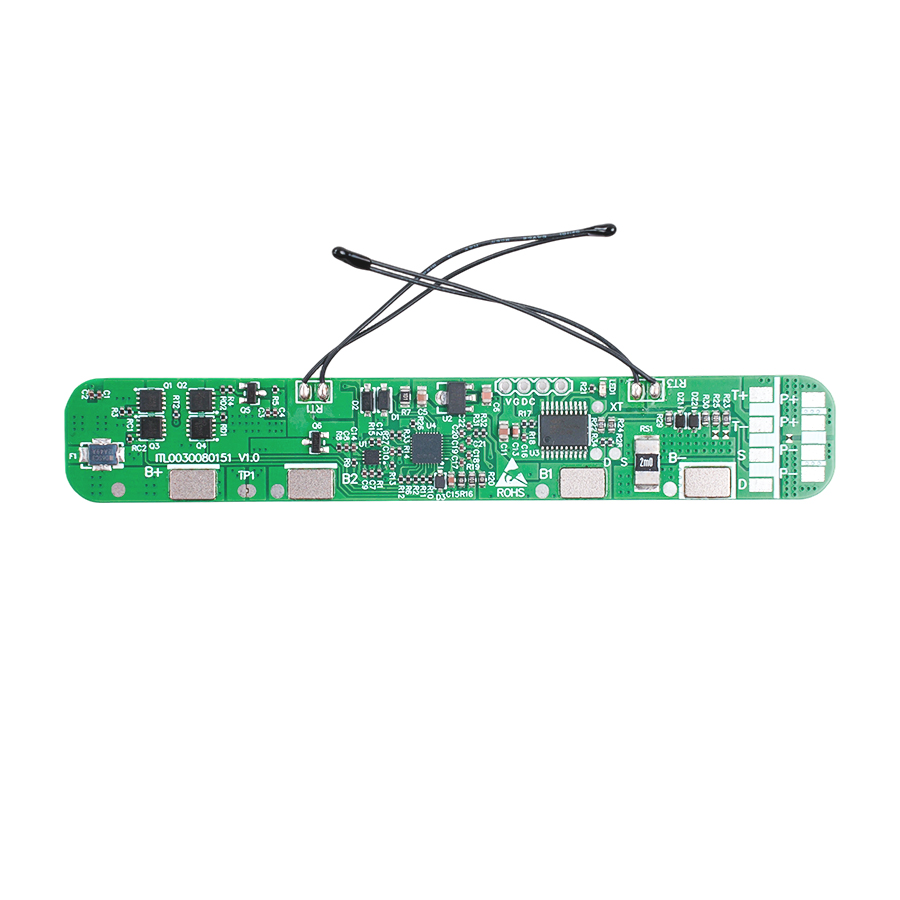

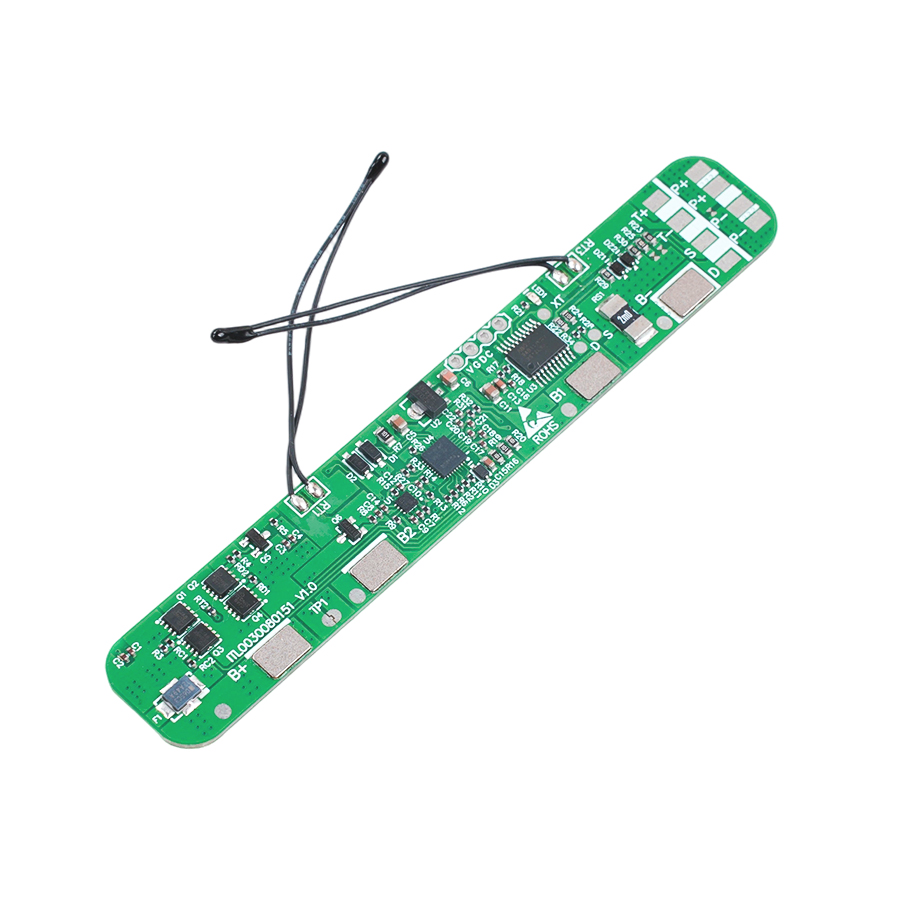

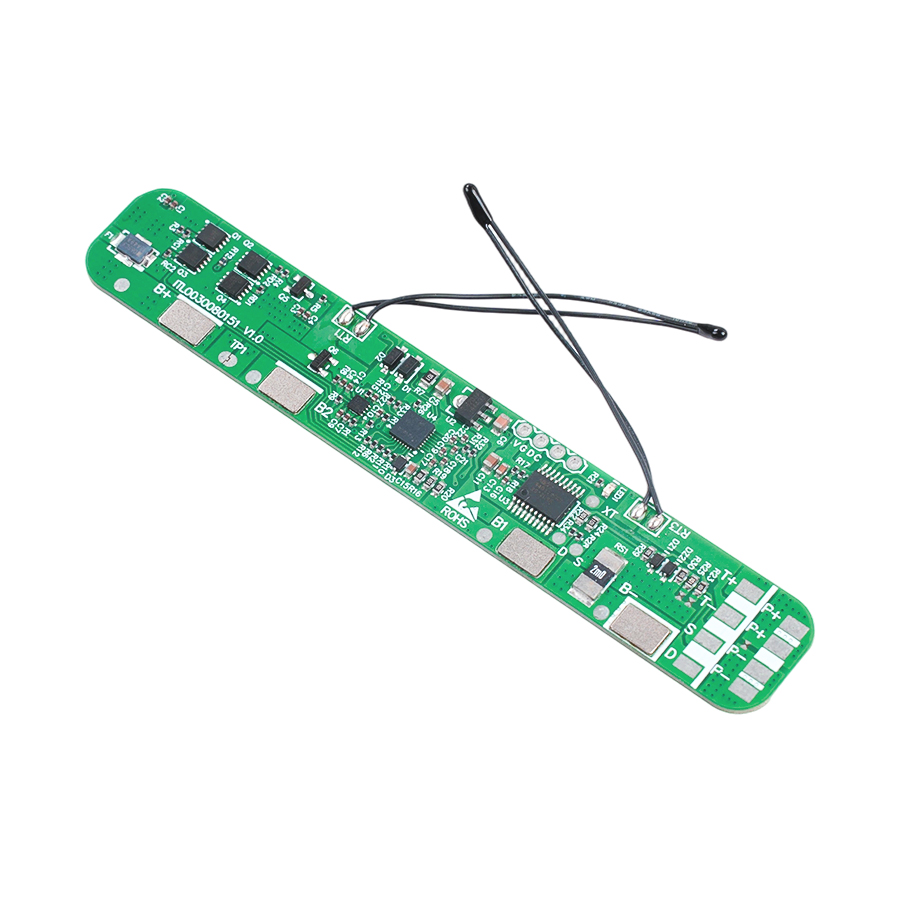

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* OCD1 Over Current Discharge: 8.0A±0.5A

* OCD2 Over Current Discharge: 9.0A±0.5A

* OCC1 Over Current Charge: 5.0A±0.5A

* OCC2 Over Current Charge: 6.0A±0.5A

* Discharging Temperature:  -21℃~74℃

* Charge Temperature:  -6℃~69℃

* Max.Discharge Current: 5A

* Max.charge Current: 4A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 104*17*2.70mm
