* Product solution Model number: BAKTH-ITL0040100129-01

*  Product Solution: BQ40Z80

* Compatibleinterface: SMBUS

* Battery Type: LiFe-PO4/Li-ion

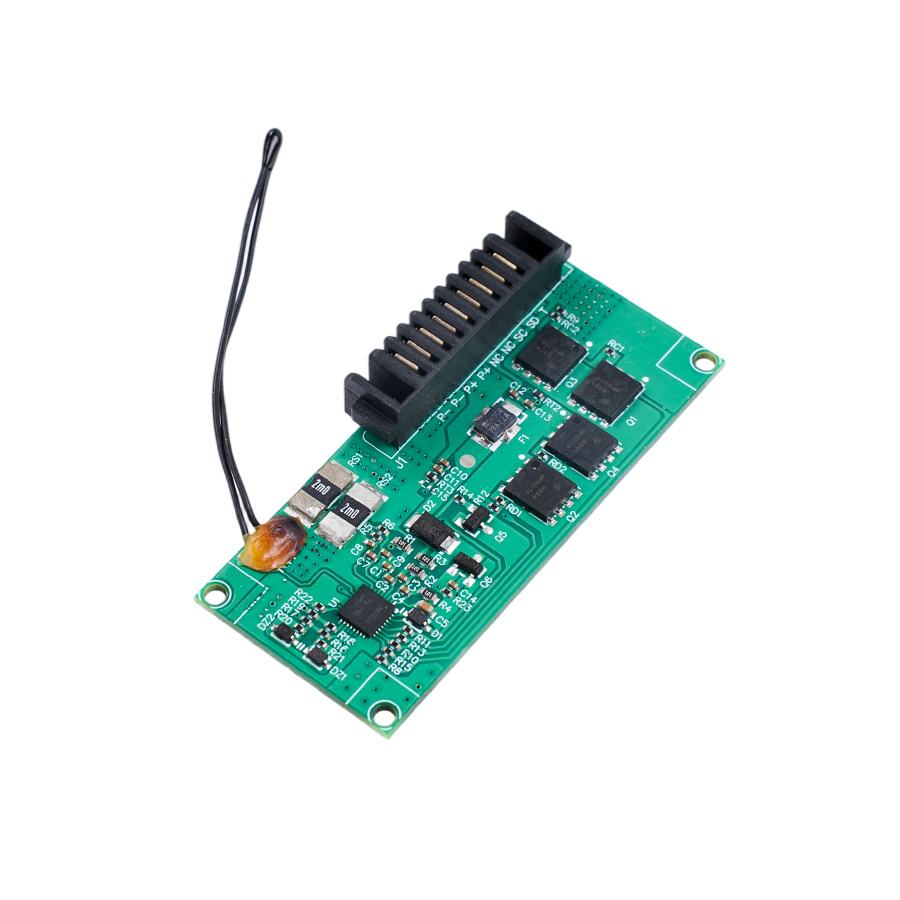

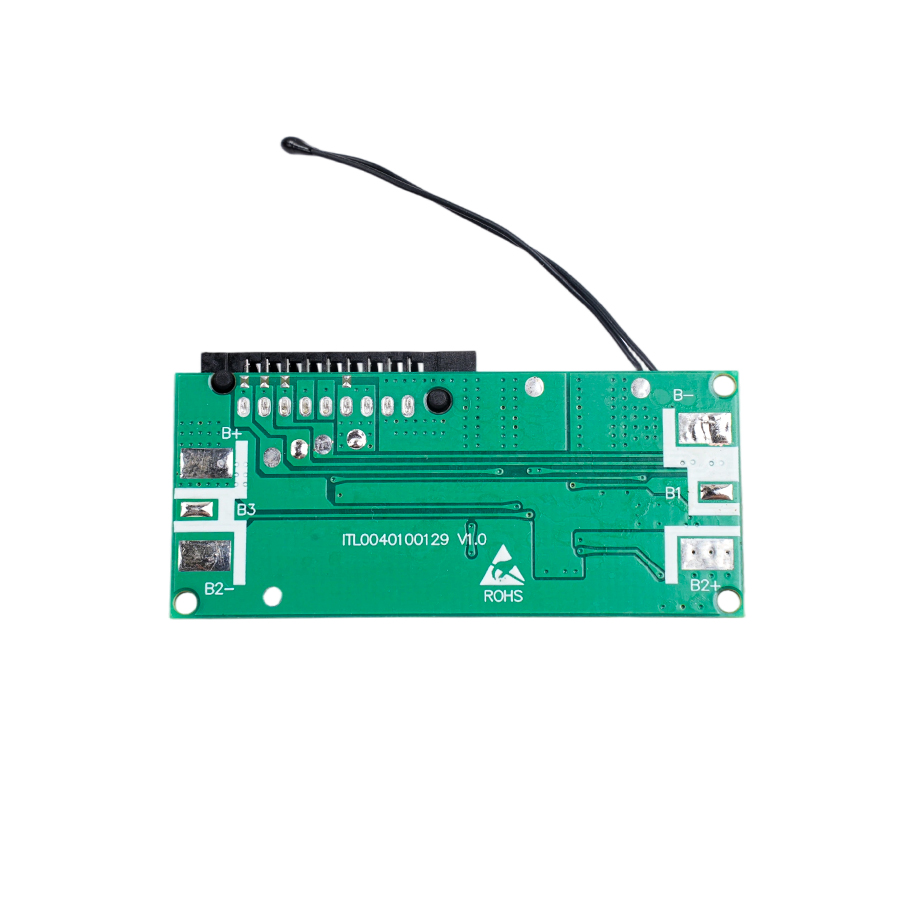

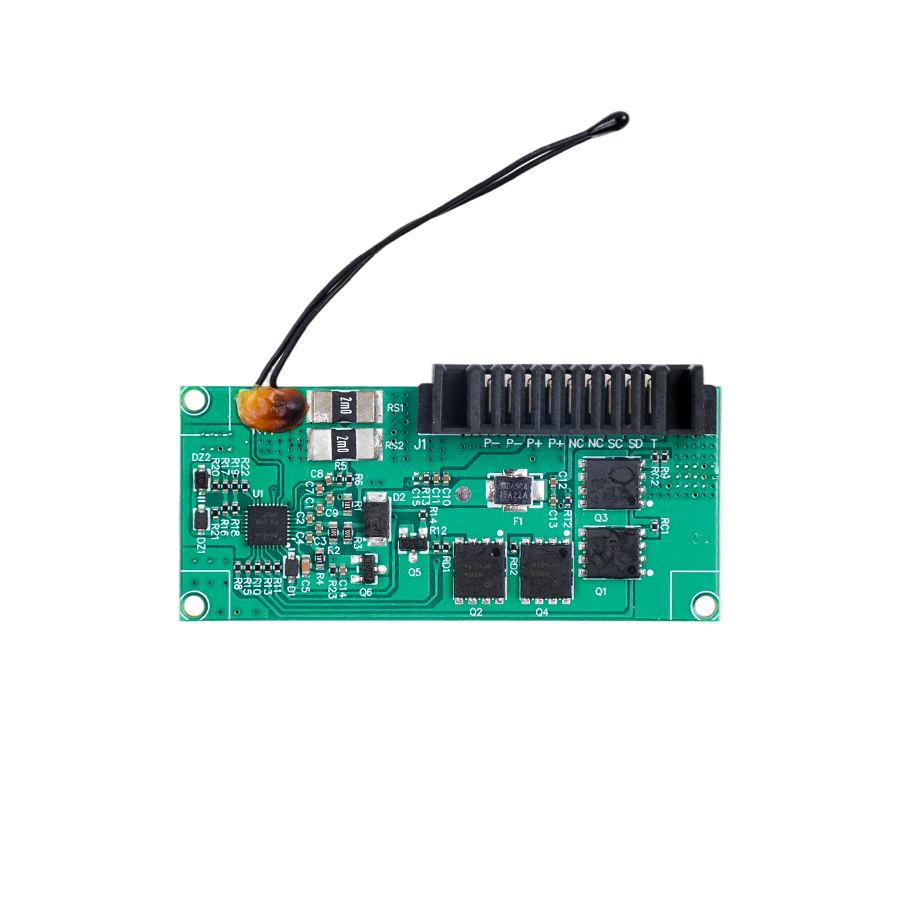

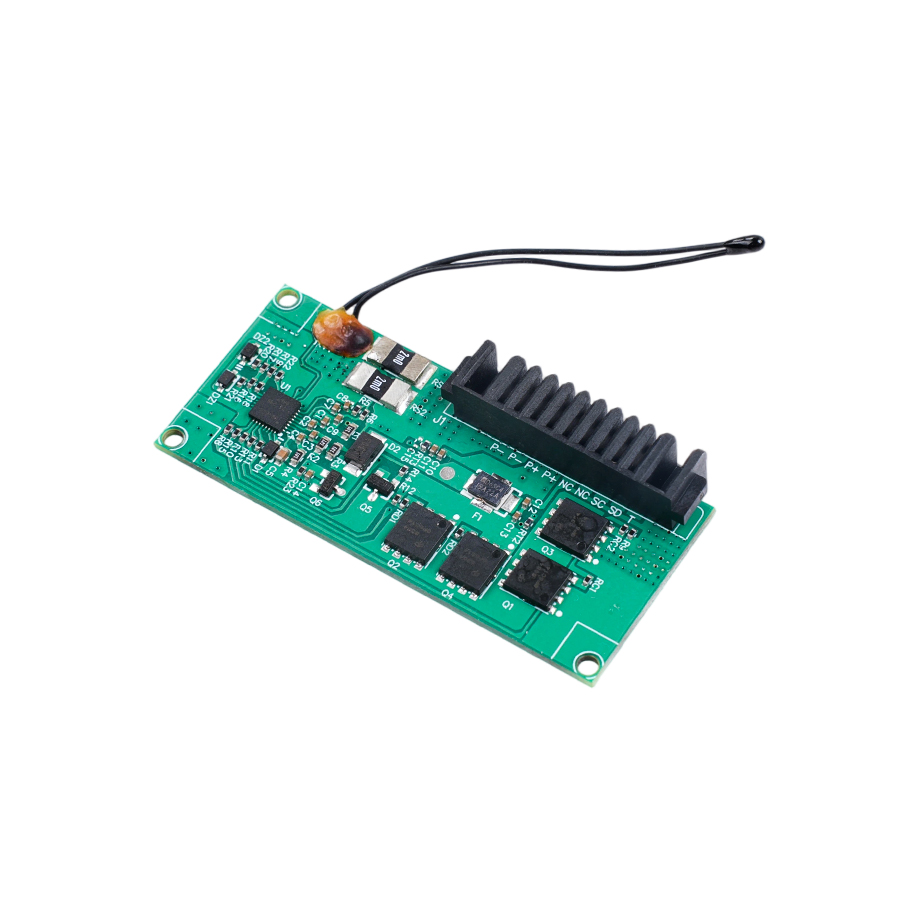

* Serial number: 4S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.750V±0.025V

* OCD1 Over Current Discharge: 20.0A±0.5A

* OCD2 Over Current Discharge: 22.0A±0.5A

* OCC1 Over Current Charge: 20.0A±0.5A

* OCC2 Over Current Charge: 22.0A±0.5A

* Discharging Temperature:  -6℃~74℃

* Charge Temperature:  -4℃~54℃

* Max.Discharge Current: 10A

* Max.charge Current: 10A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 55*24*7.7mm
