* Product solution Model number: BAKTH-ITL0040100141-01

* Product Solution: CW1244ALBS

* Compatibleinterface: Hardware board

* Battery Type: LiLe-PO4

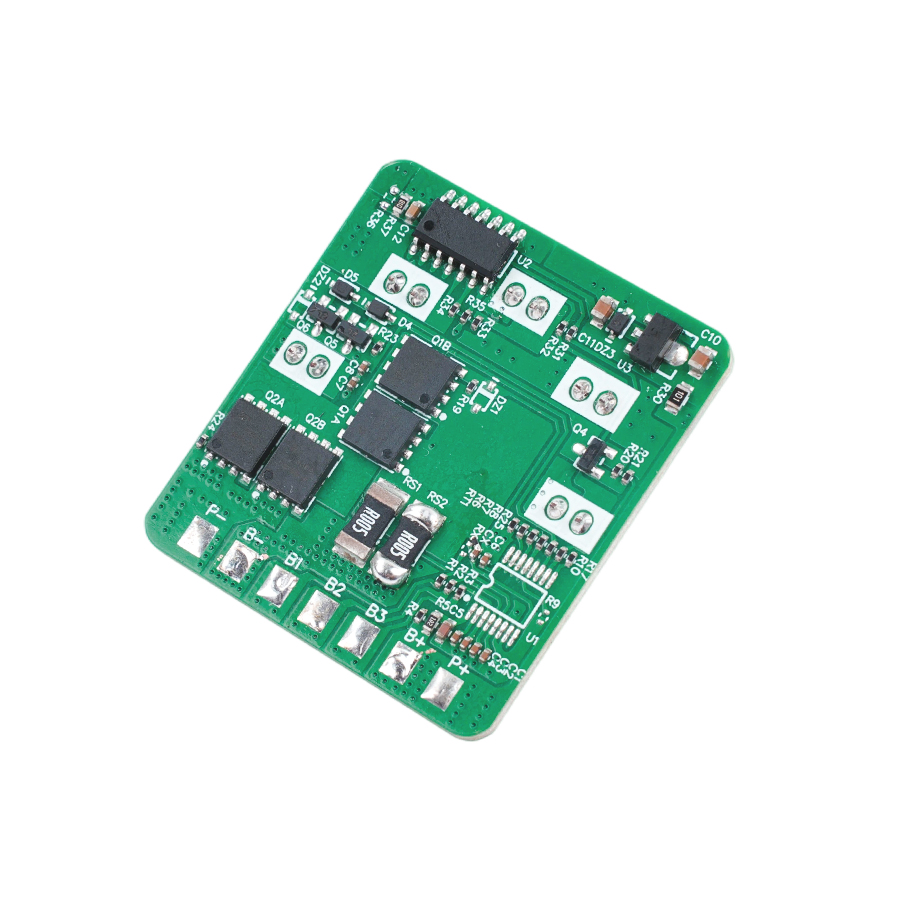

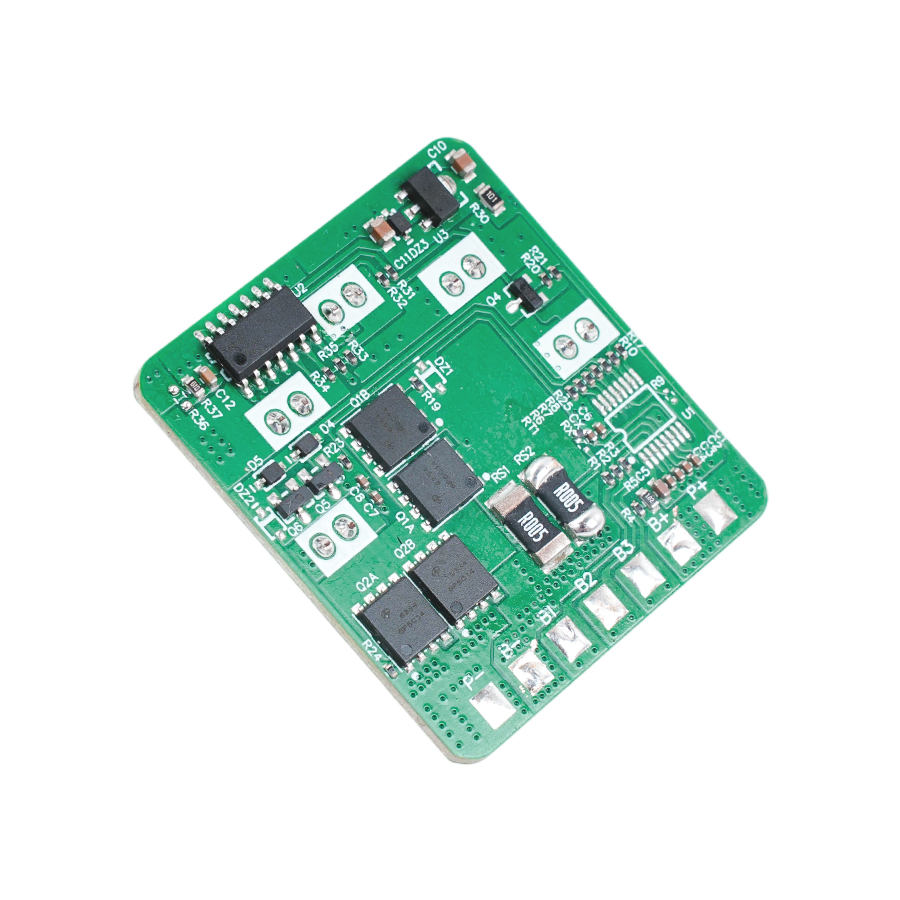

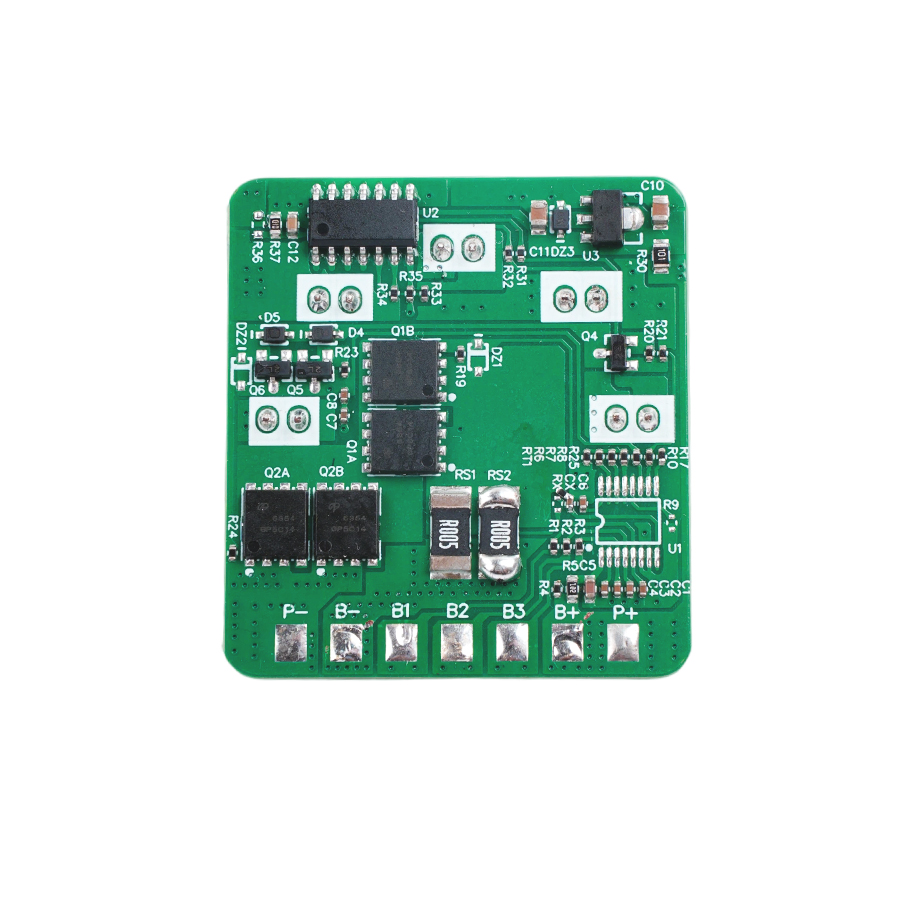

* Serial number: 4S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.030V

* Over Discharge Detection Voltage(Cell): 2.700V±0.030V

* OCD1 Over Current Discharge: 20A±3A

* OCD2 Over Current Discharge: 40A±5A

* OCC1 Over Current Charge: 8A±3A

* Discharging Temperature:  /

* Charge Temperature:  /

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): 40.8*37.5*11.70mm
