* Product solution Model number: BAKTH-ITL0040150133-01

* Product Solution: BQ20Z65DBTR+BQ294700DSGR

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

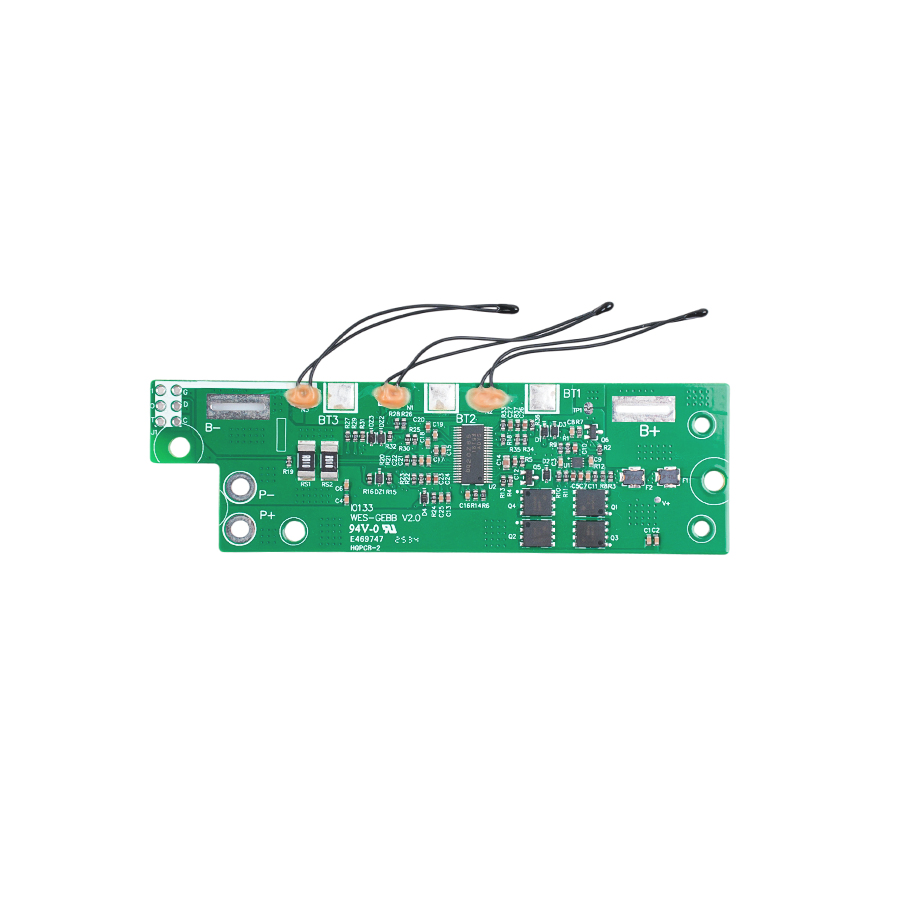

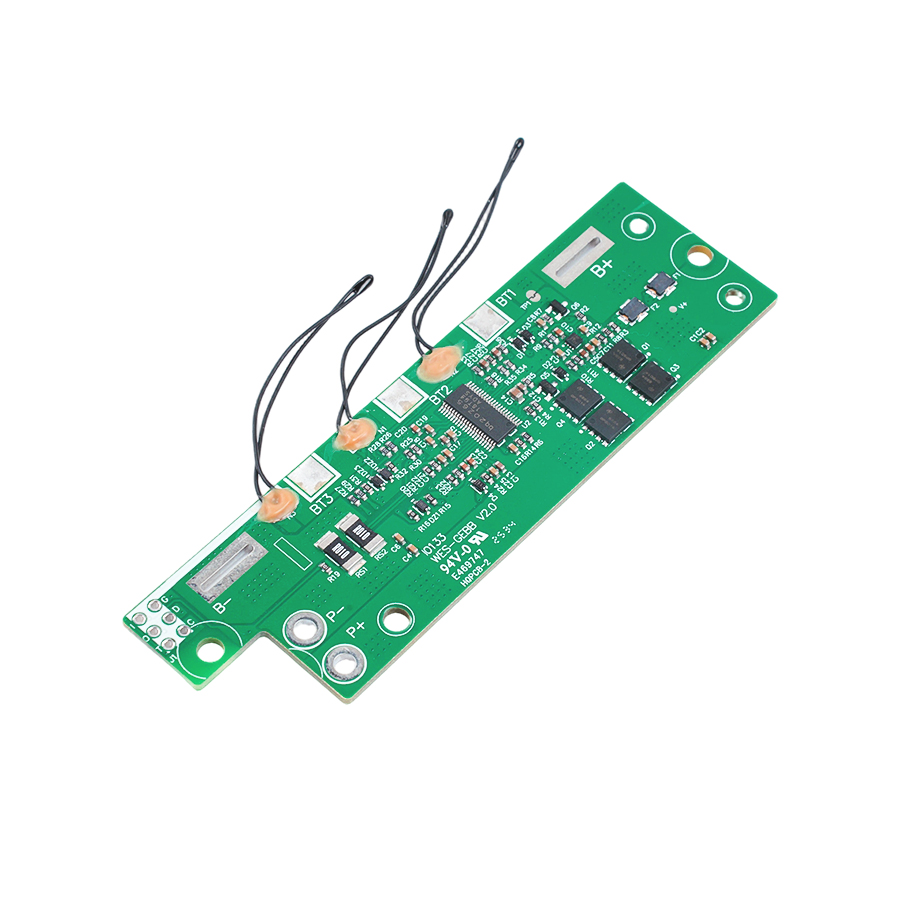

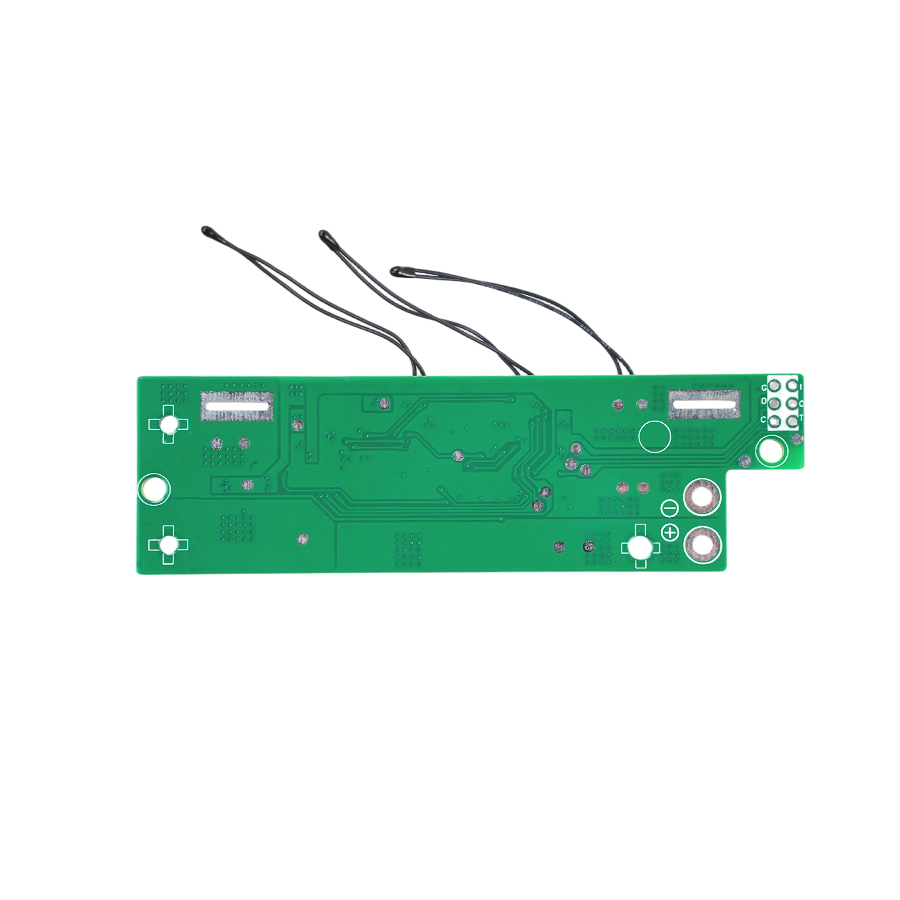

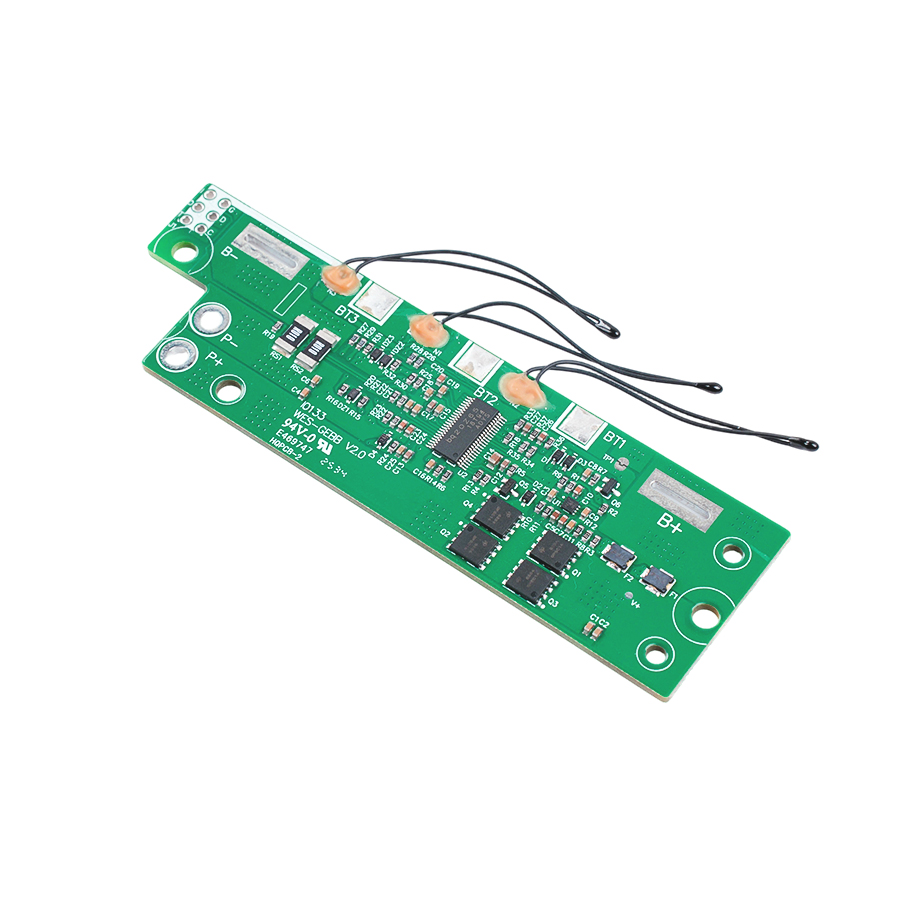

* Serial number: 4S lithium battery protection board

* Over charge detection voltage(Cell):  4.330V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* Over Current Discharge: 22.0A±0.5A

* Over Current Charge: 6.50A±0.5A

* Discharging Temperature:  71℃~79℃

* Charge Temperature:  54℃~64℃

* Max.Discharge Current: 10A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 111*33*3.32mm
