* Product solution Model number: BAKTH-ITL0040200134-01

* Product Solution: CW1244ALBS

* Compatibleinterface: Hardware board

* Battery Type: Li-ion

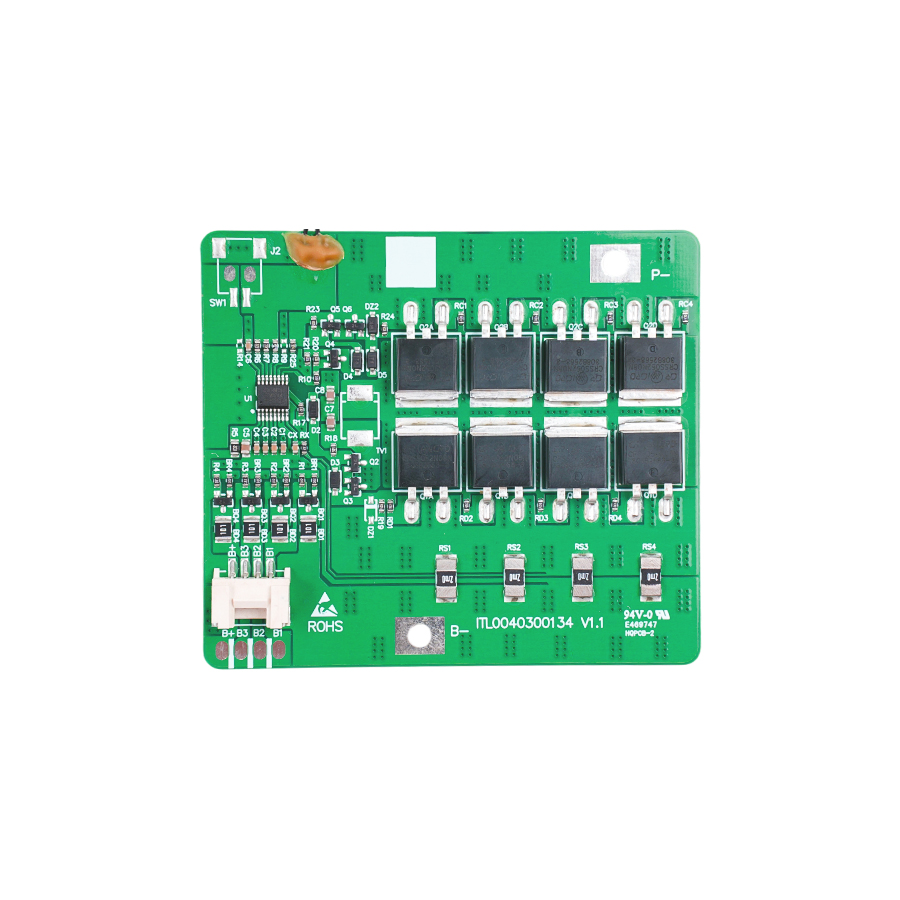

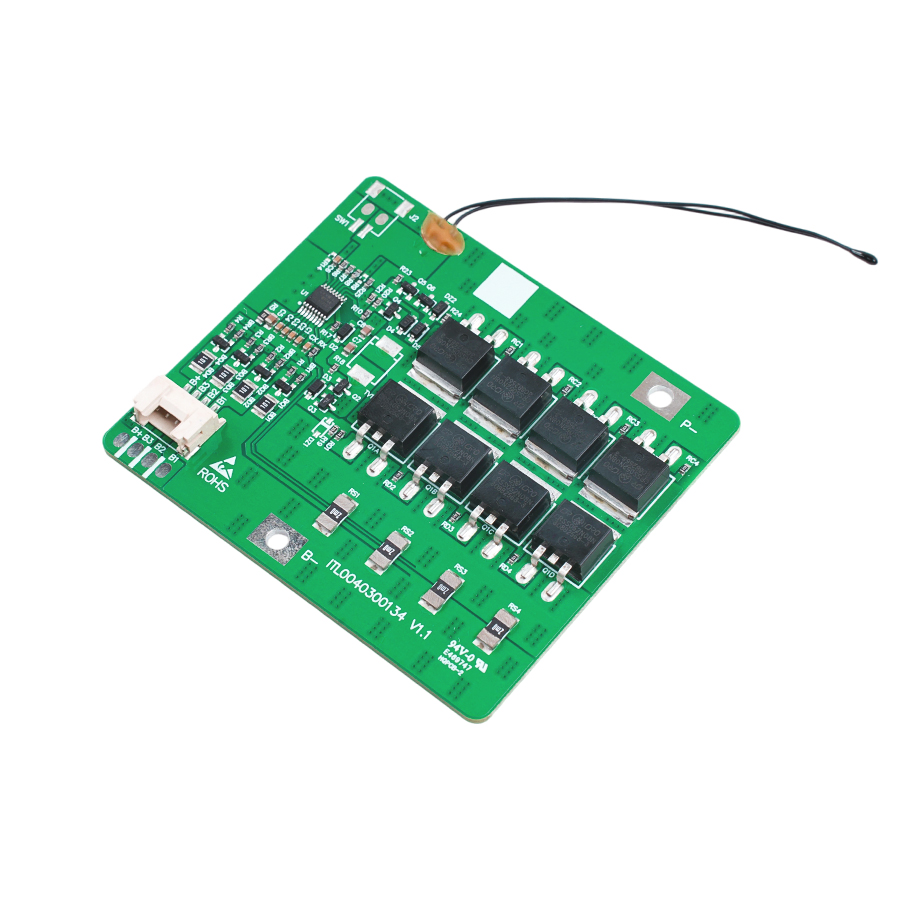

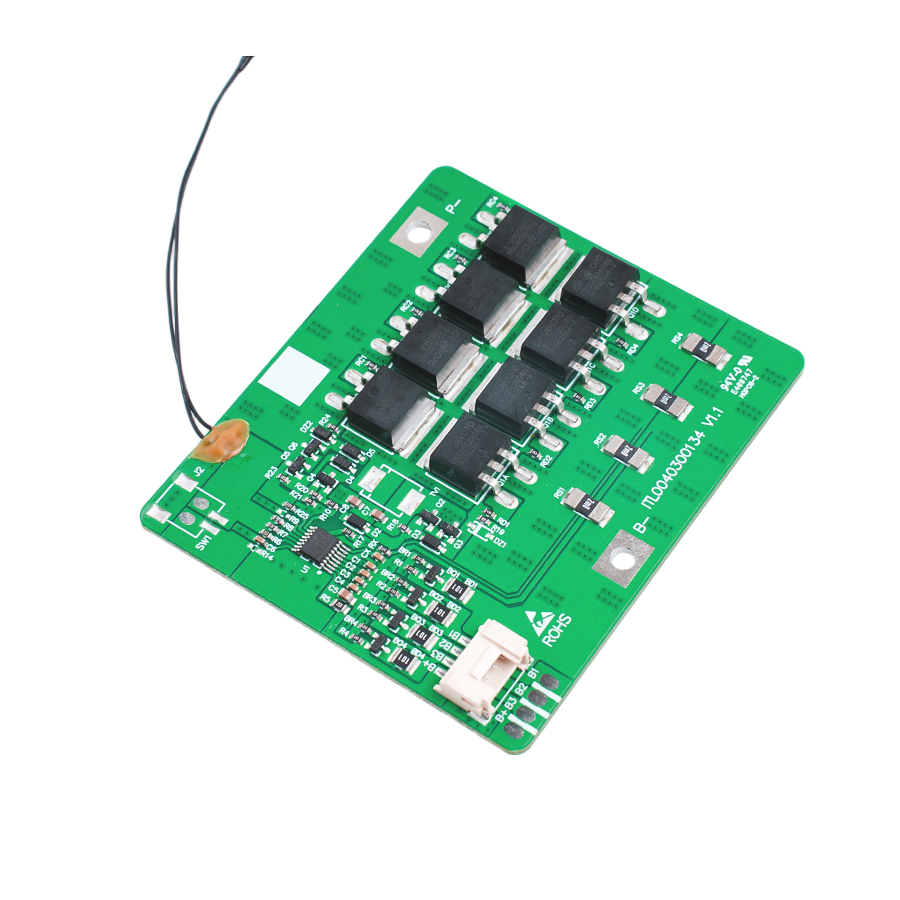

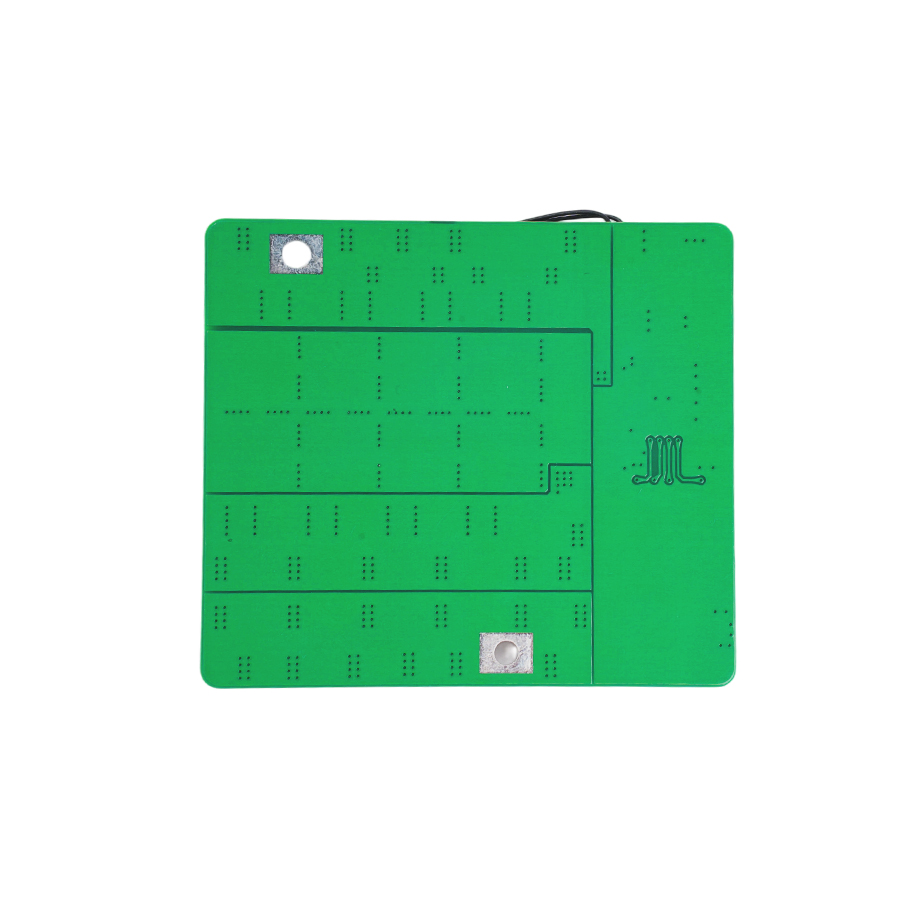

* Serial number: 4S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.030V

* Over Discharge Detection Voltage(Cell): 2.700V±0.030V

* Equalizing voltage:  4.125V±0.100V

* Equalizing current:  30mA-60mA

* Over Current Discharge: 60A±15A

* Over Current Charge: 25A±10A

* Discharging Temperature:  -16℃~74℃

* Charge Temperature:  -4℃~64℃

* Max.Discharge Current: 20A

* Max.charge Current: 15A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): 80*70*6.82mm
