* Product solution Model number: BAKTH-ITL0050200138-01

* Product Solution: BQ40Z80RSMR+ME6203A33PG+GC1563_IP5385

* Compatibleinterface: SMBUS

* Battery Type: LiFe-PO4/Li-ion

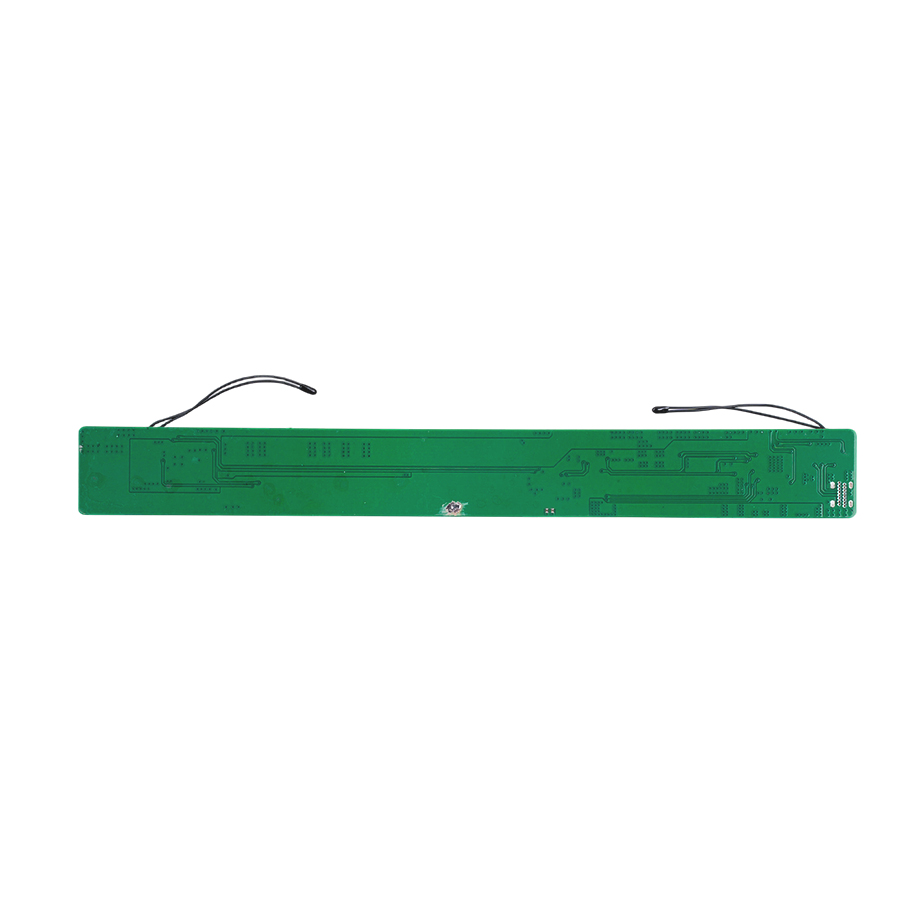

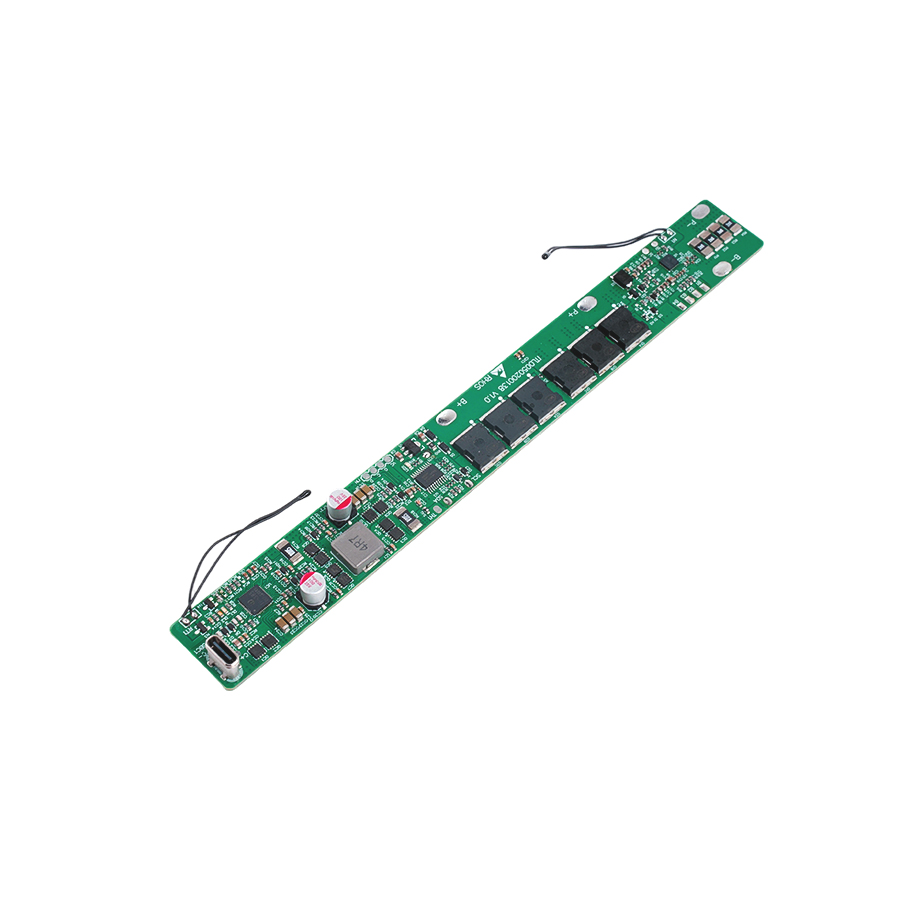

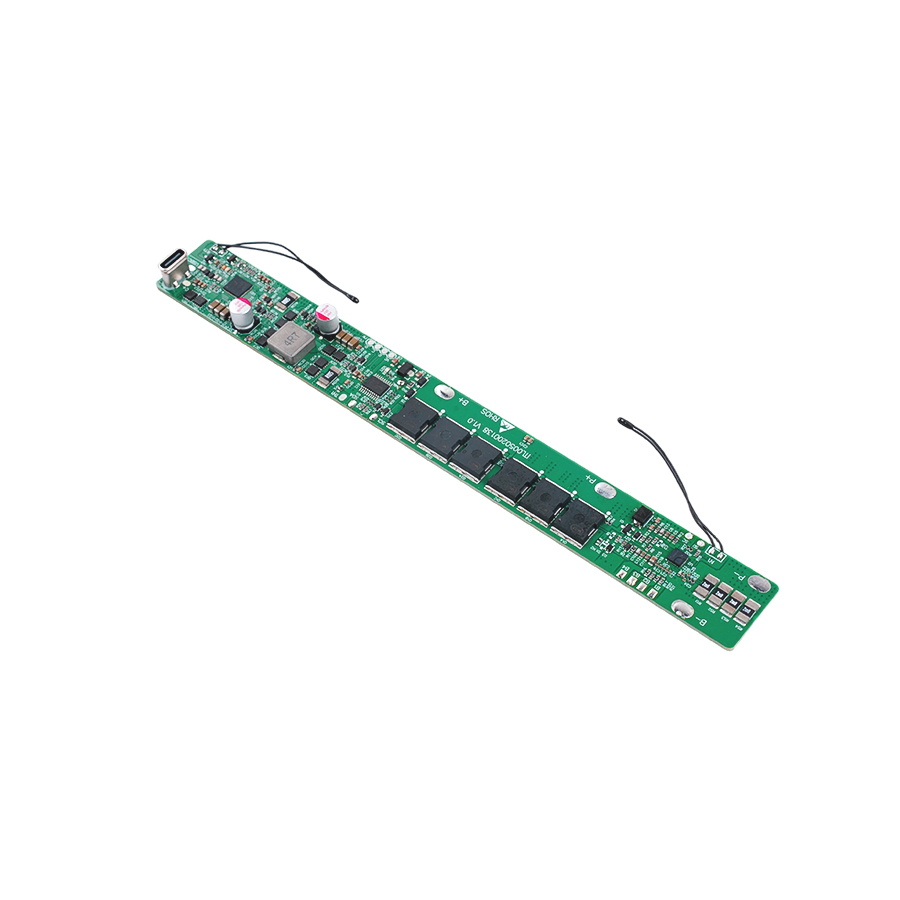

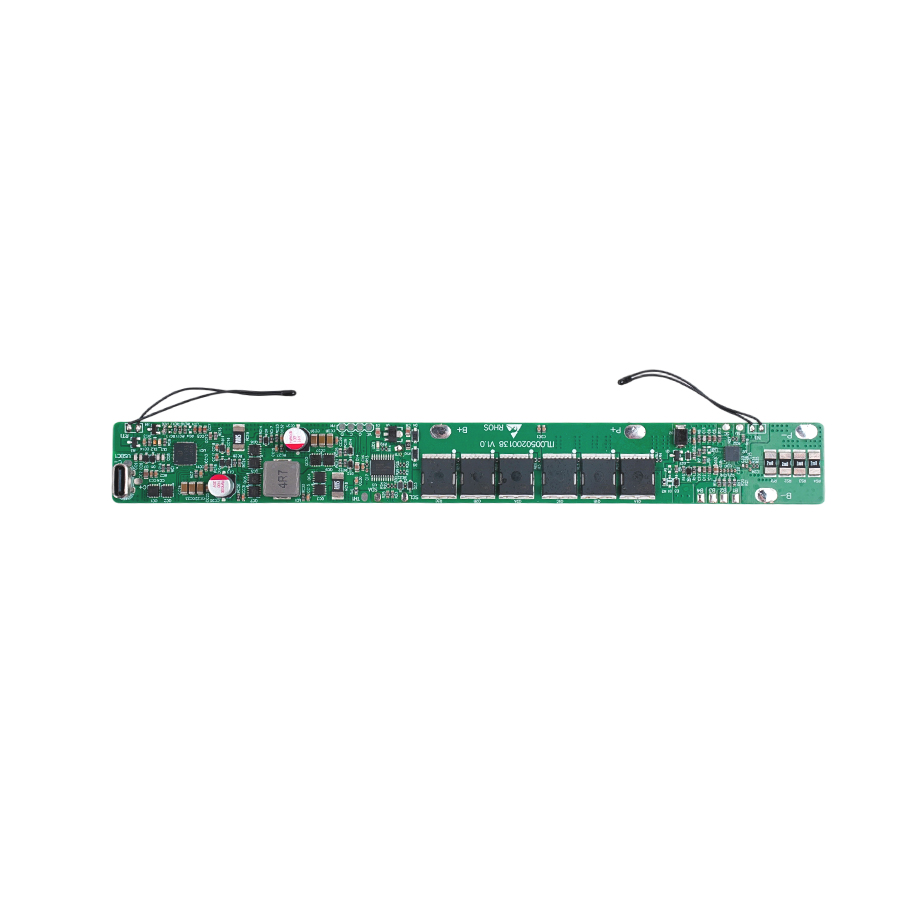

* Serial number: 5S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* OCD1 Over Current Discharge: 30.0A±1.0A

* OCD2 Over Current Discharge: 32.0A±1.0A

* OCC1 Over Current Charge: 30.0A±1.0A

* OCC2 Over Current Charge: 32.0A±1.0A

* Discharging Temperature:  -31℃~74℃

* Charge Temperature:  -6℃~74℃

* Max.Discharge Current: 20A

* Max.charge Current: 20A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 200*23*10.55mm
