* Product solution Model number: BAKTH-ITL0060050139-01

* Product Solution: BQ40Z80

* Compatibleinterface: SMBUS

* Battery Type: LiFe-PO4/Li-ion

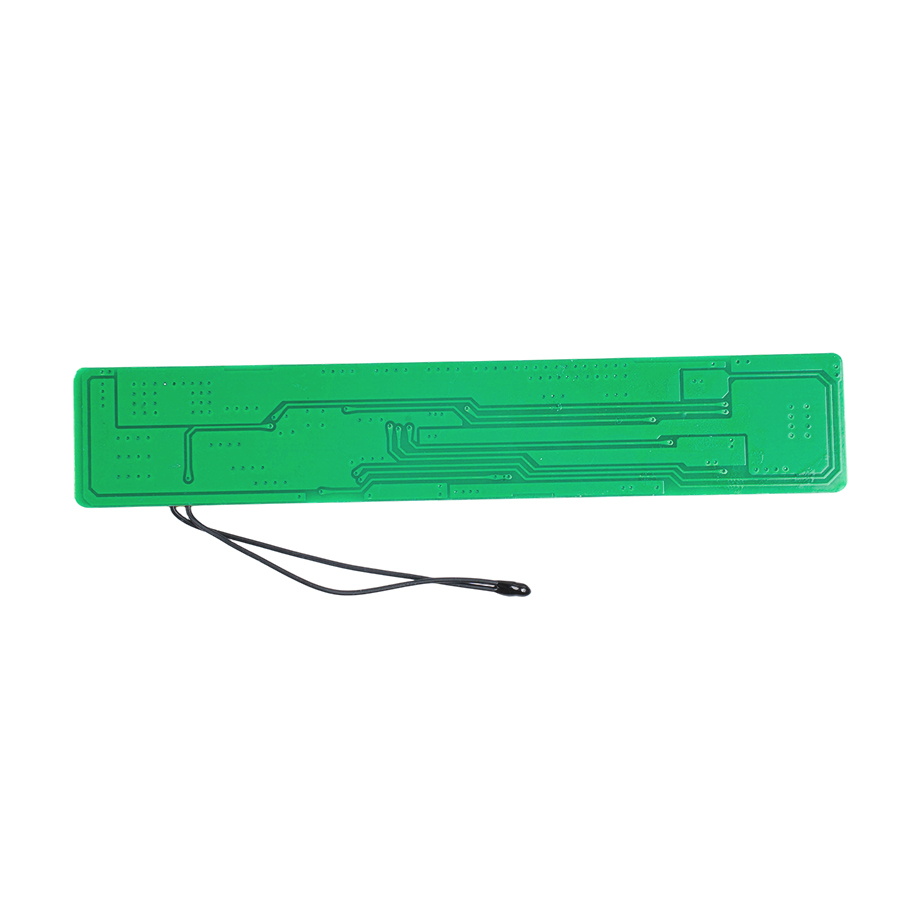

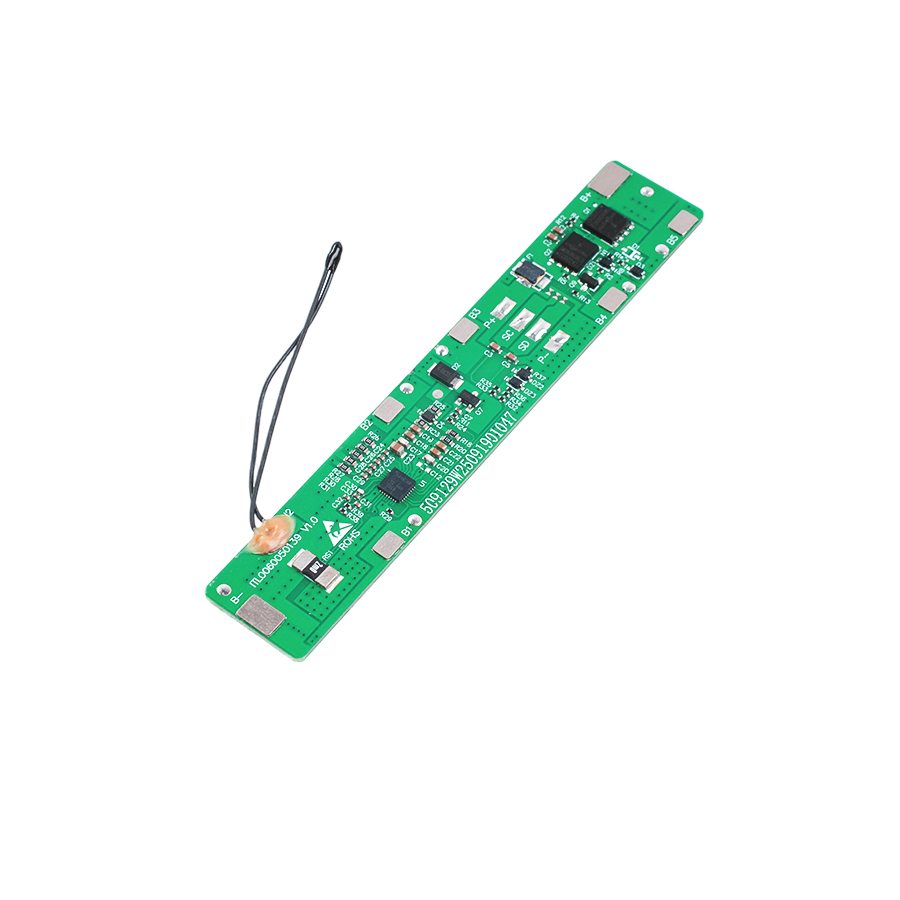

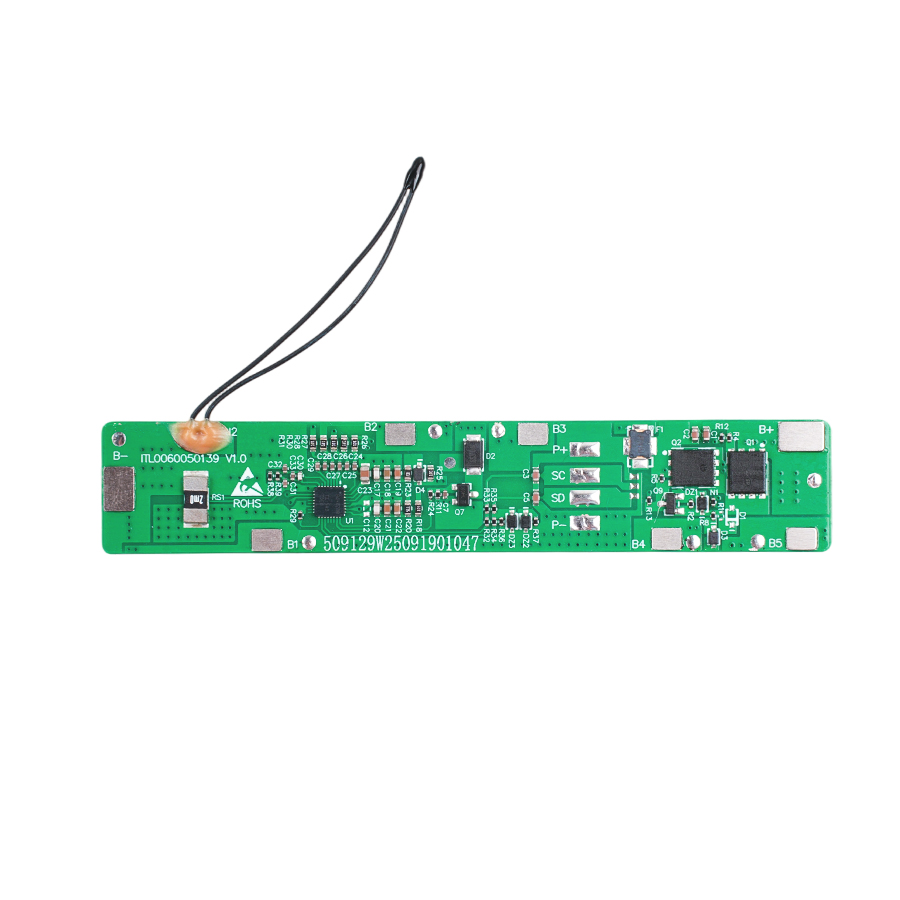

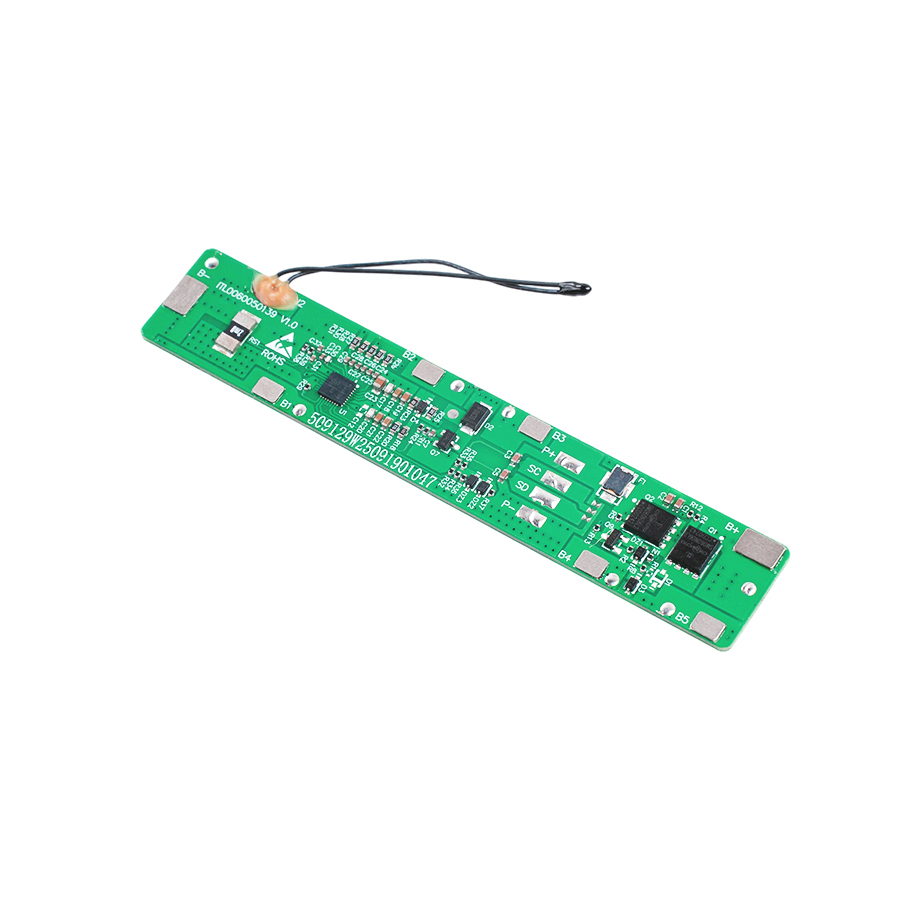

* Serial number: 6S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* OCD1 Over Current Discharge: 6.0A±0.5A

* OCD2 Over Current Discharge: 8.0A±0.5A

           * OCC1 Over Current Charge: 6.0A±0.5A

* OCC2 Over Current Charge: 8.0A±0.5A

* Discharging Temperature:  -16℃~79℃

* Charge Temperature:  -1℃~69℃

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 98*18*2.33mm
