* Product solution Model number: BAKTH-ITL0100050135-01

* Product Solution: CW1104ALAS

* Compatibleinterface: Hardware board

* Battery Type: Li-ion

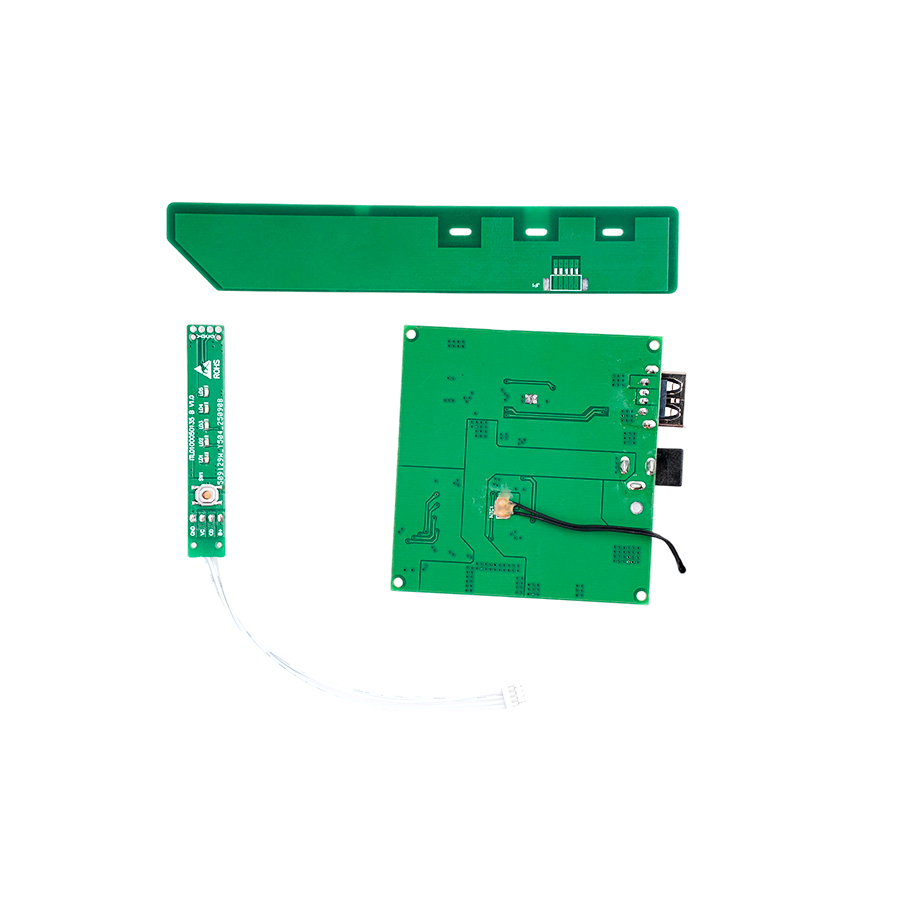

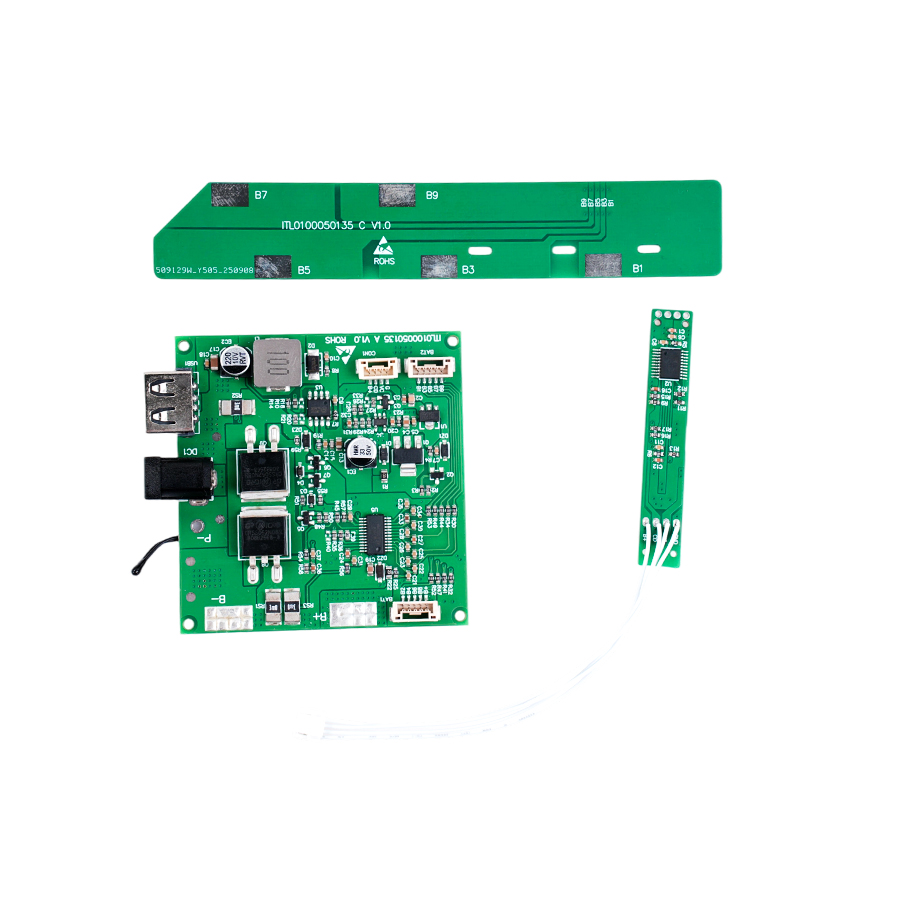

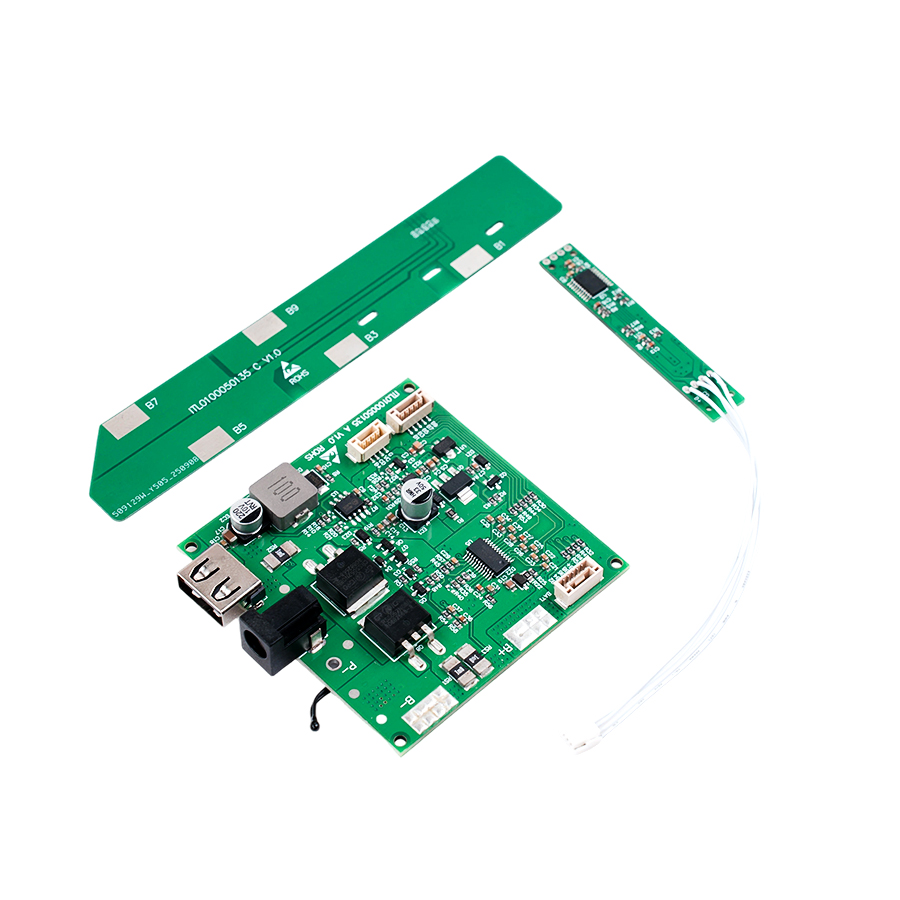

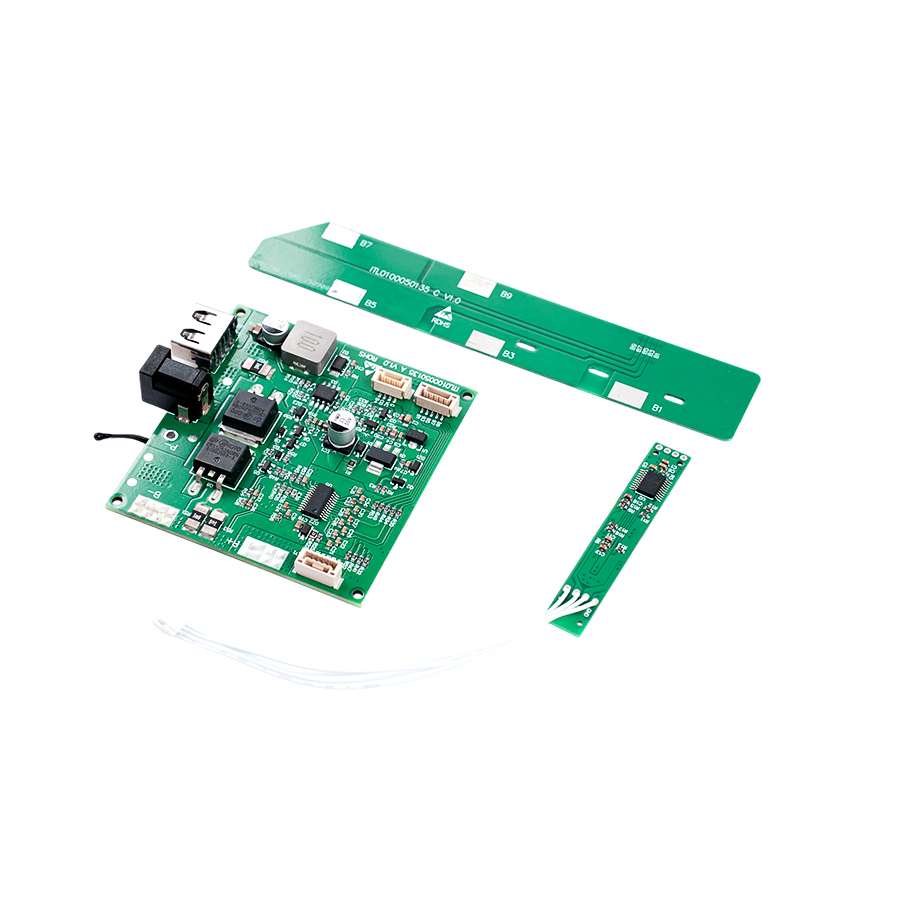

* Serial number: 10S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.030V

* Over Discharge Detection Voltage(Cell): 2.700V±0.080V

*  Over Current Discharge: 30A±5A

*  Over Current Charge: 12A±5A

* Discharging Temperature:  -29℃~74℃

* Charge Temperature:  -9℃~54℃

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): A板64*62*13.25mm  B板56*9*3.5mm  C板123*21*5.12mm
