* Product solution Model number: BAKTH-ITL0030100131-01

* Product Solution: CW1244DLBS

* Compatibleinterface: Hardware board

* Battery Type: LiLe-PO4

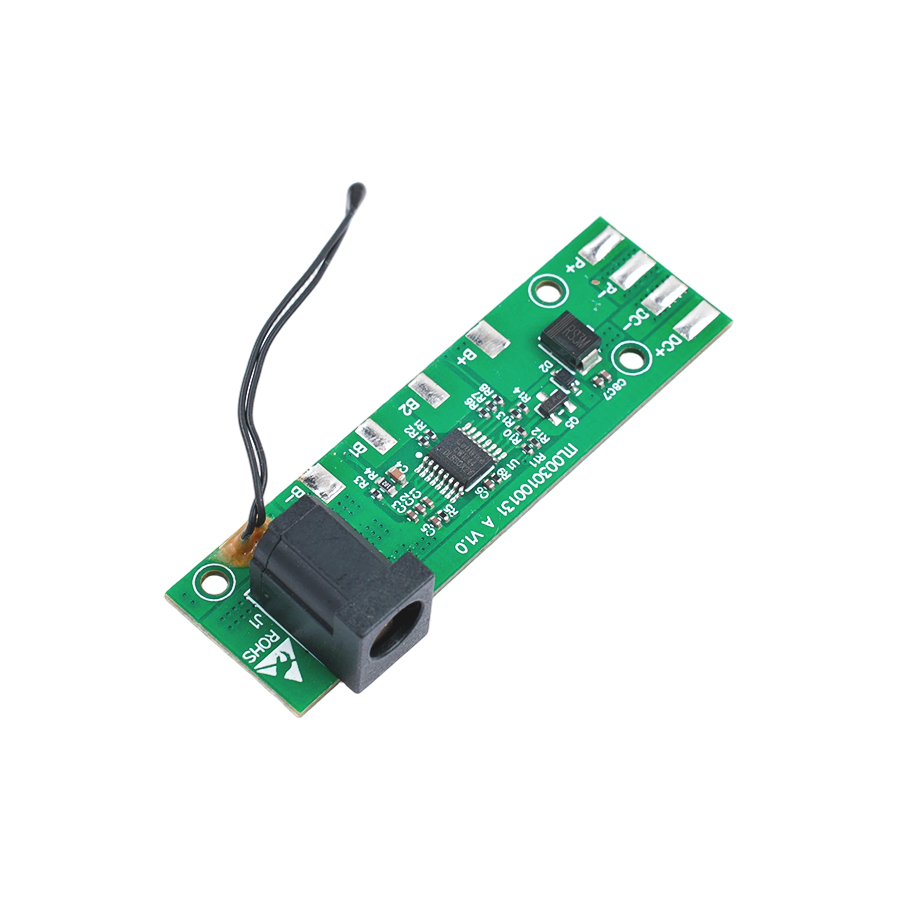

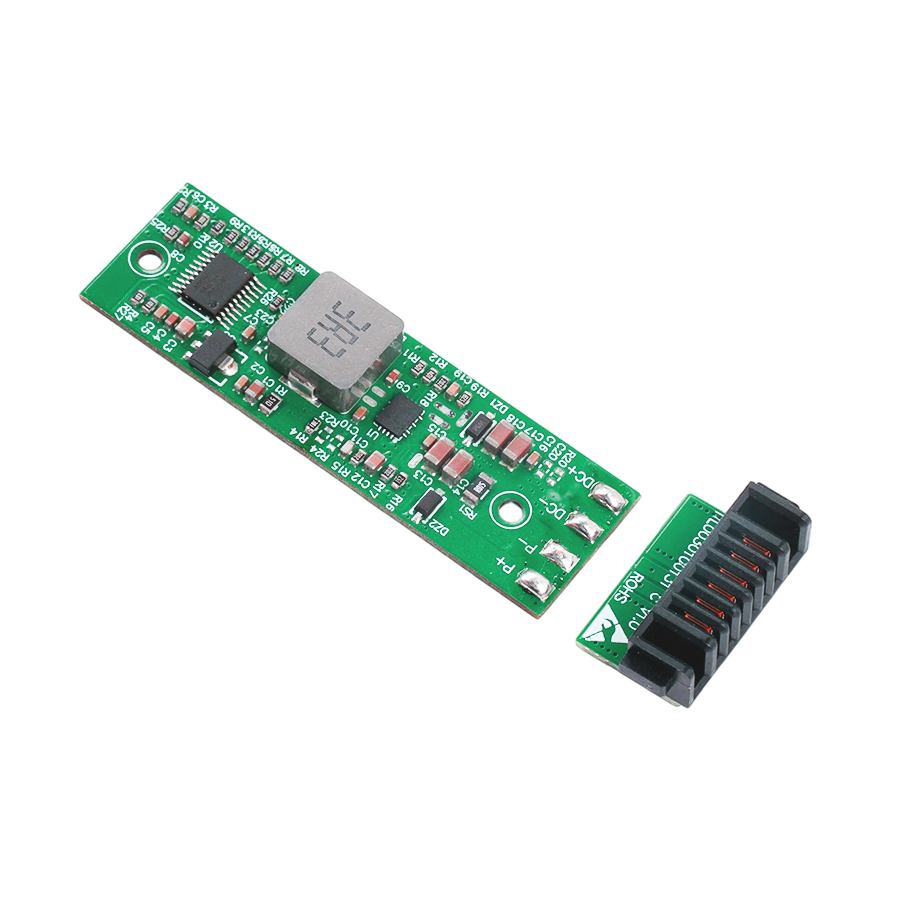

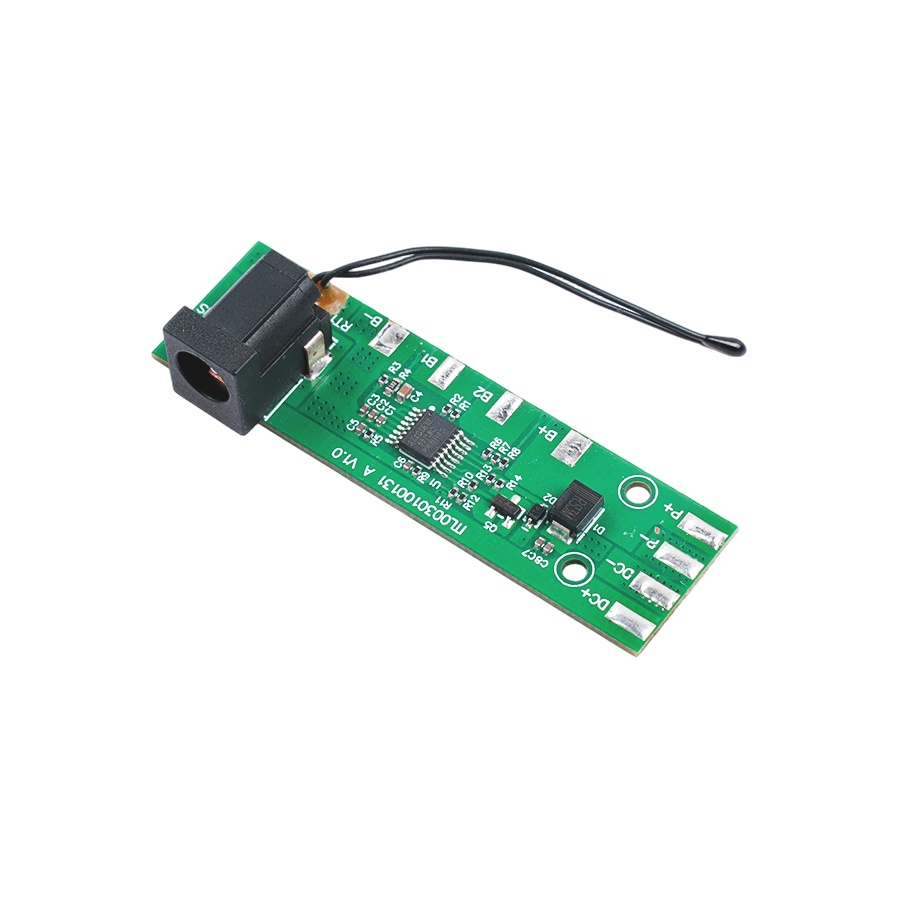

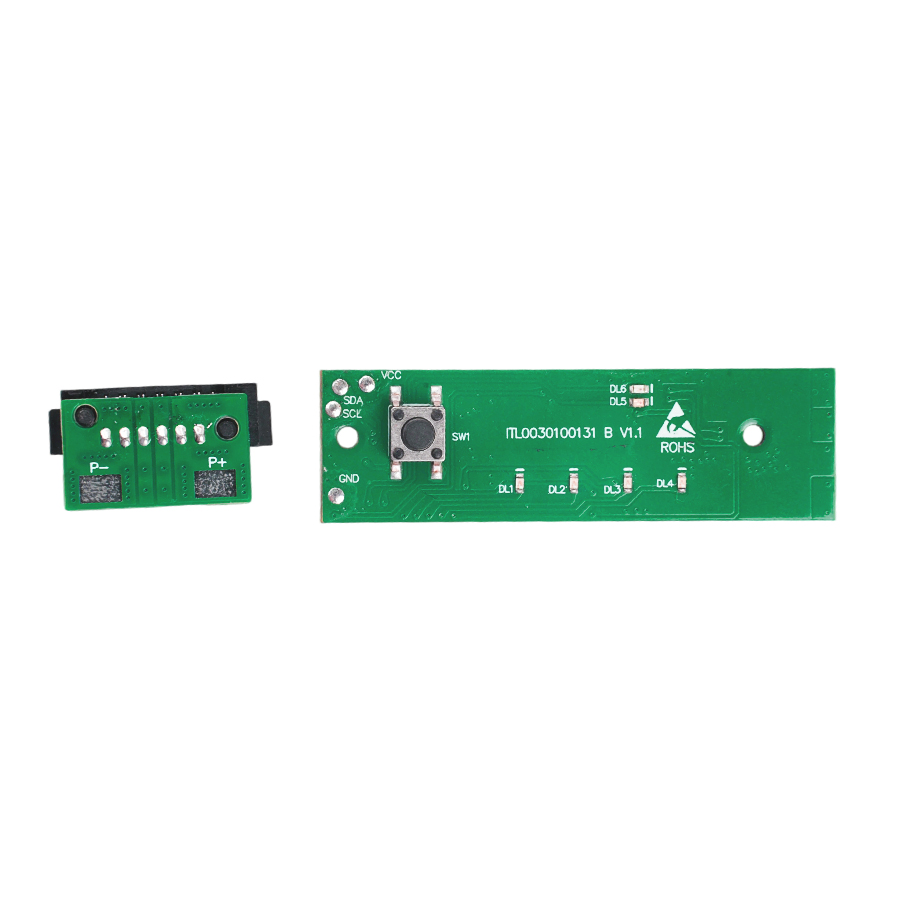

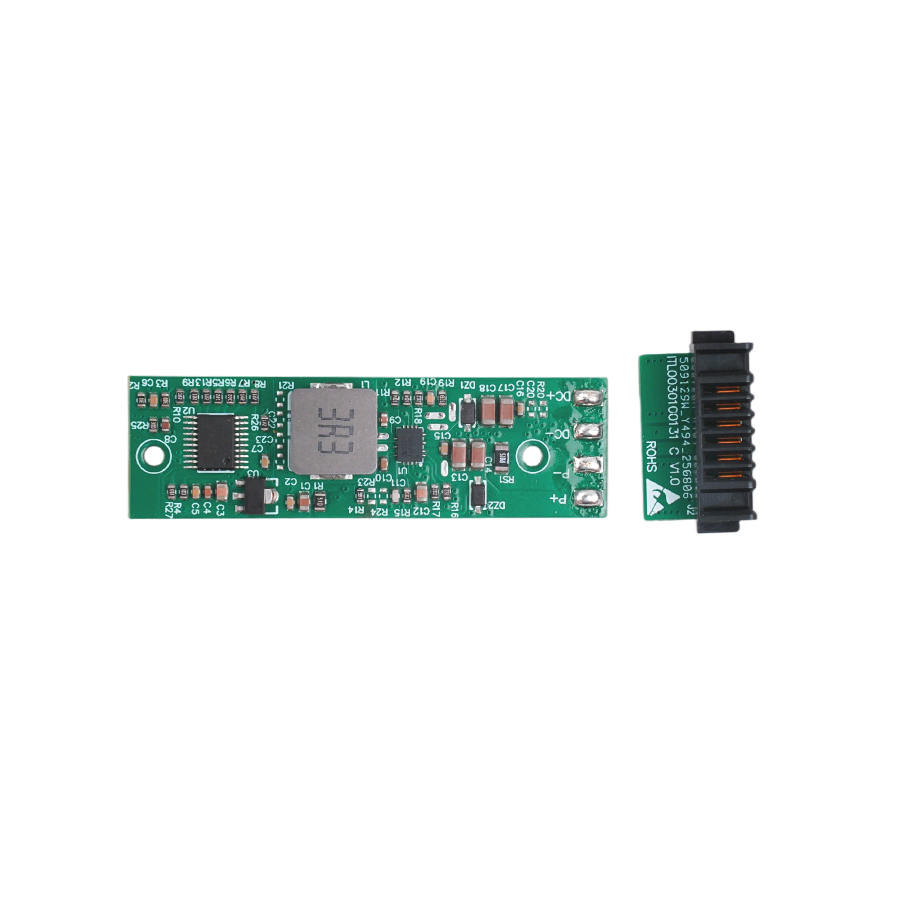

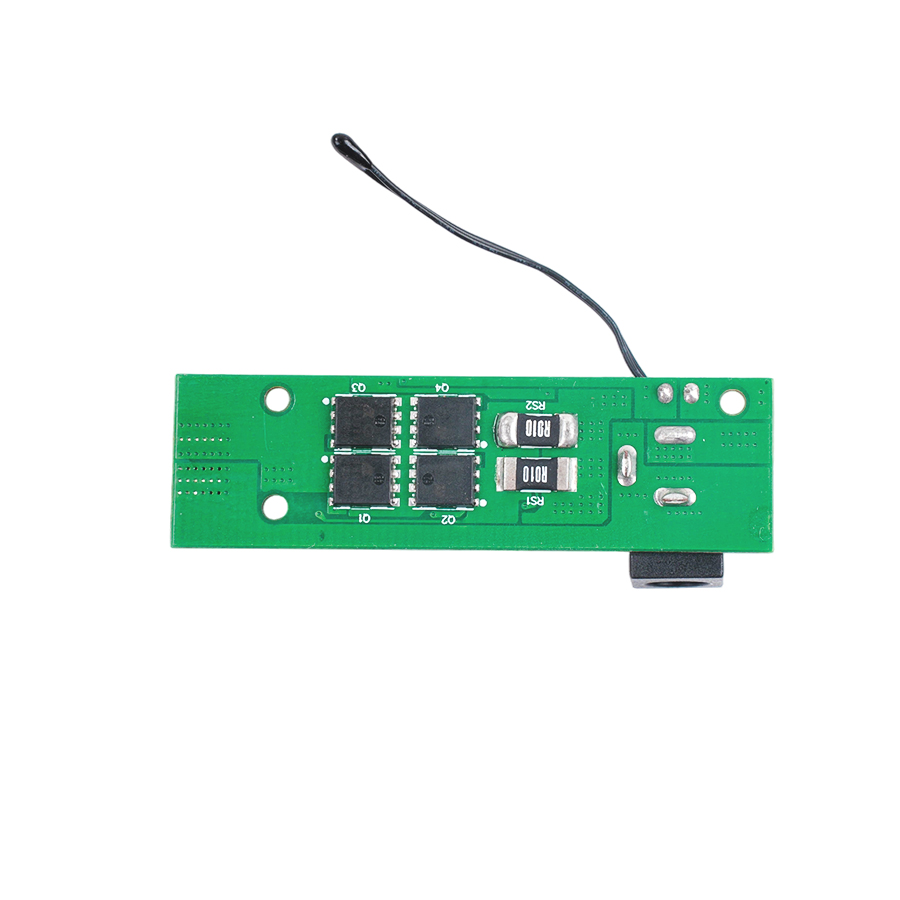

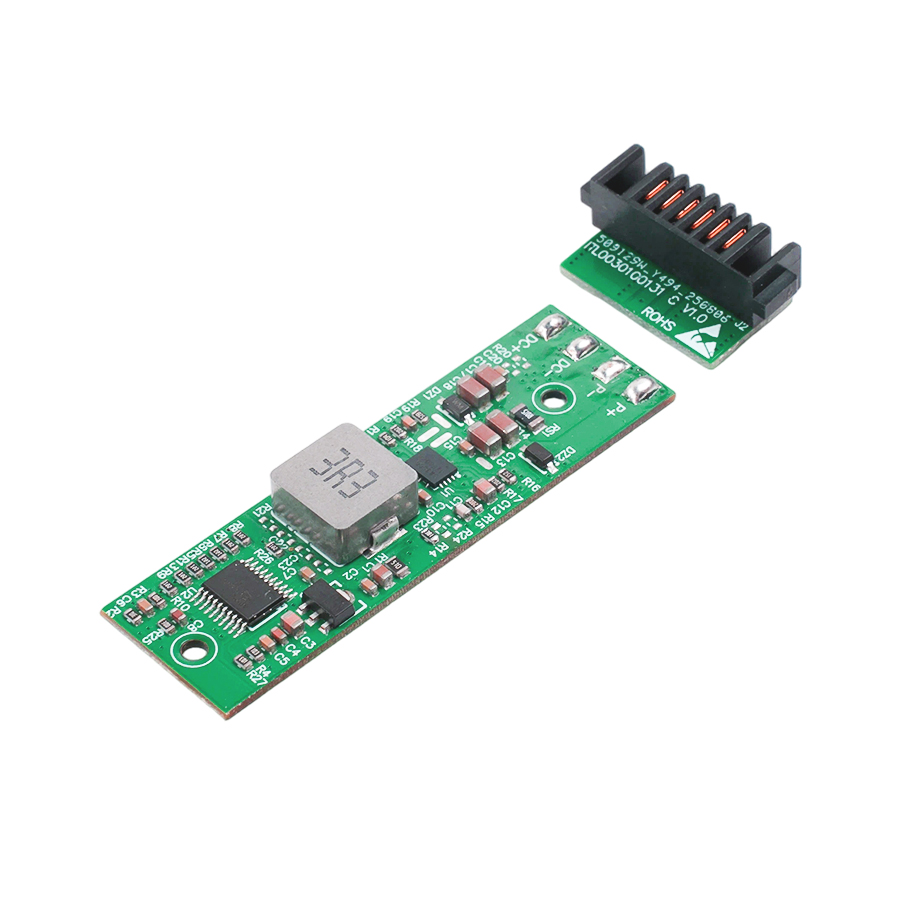

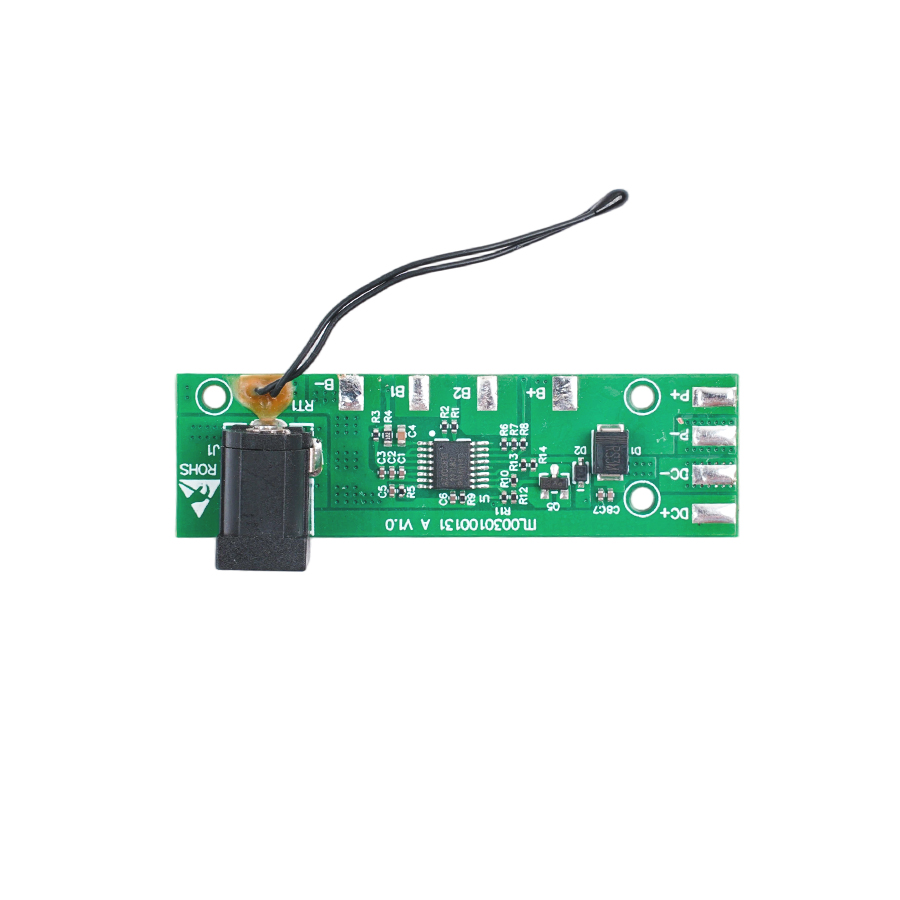

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.030V

* Over Discharge Detection Voltage(Cell): 2.700V±0.030V

* Over Current Discharge: 5A±1.5A

* 2nd Level Overcurrent Discharge: 9A±3.5A

*  Over Current Charge: 3A±1.5A

* Discharging Temperature:  -50℃~74℃

* Charge Temperature:  -30℃~74℃

* Max.Discharge Current: 3A

* Max.charge Current: 2A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): A板 58*17*12.39mm  B板 58*17**6.5mm C板20*12*7.85mm
