* Product solution Model number: ITL0020050183-01

* Product Solution: R5460N213AD+DS2781E

           * Compatibleinterface: Hardware board

* Battery Type: LiFe-PO4

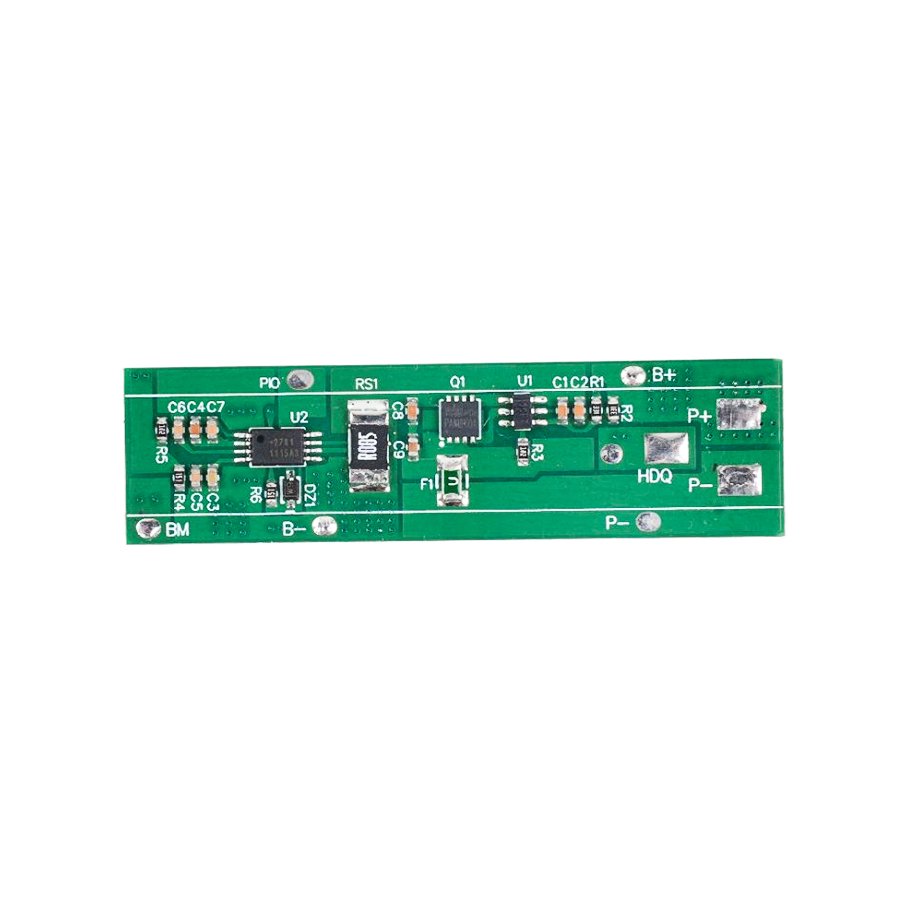

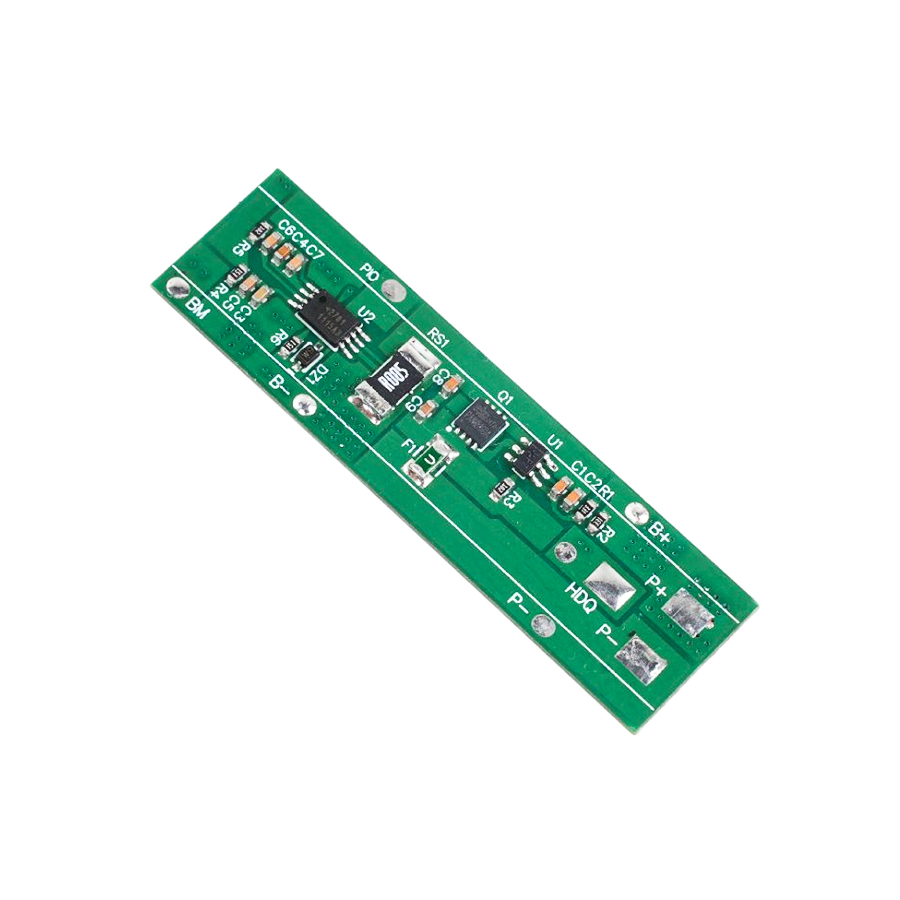

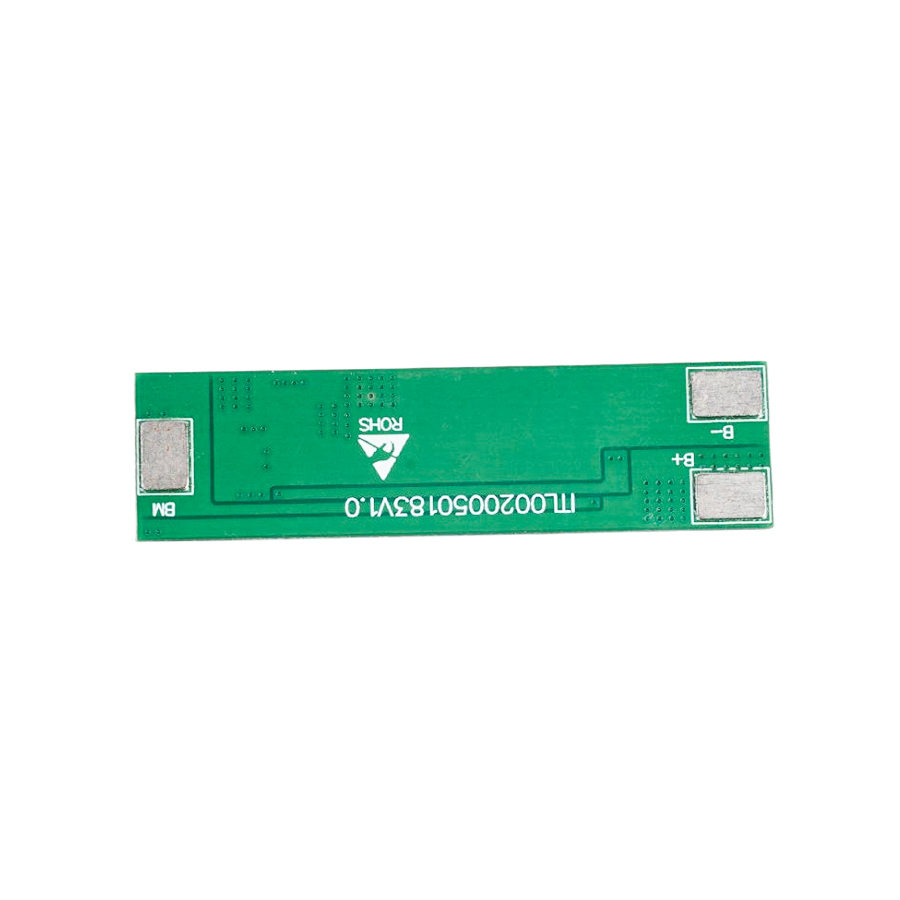

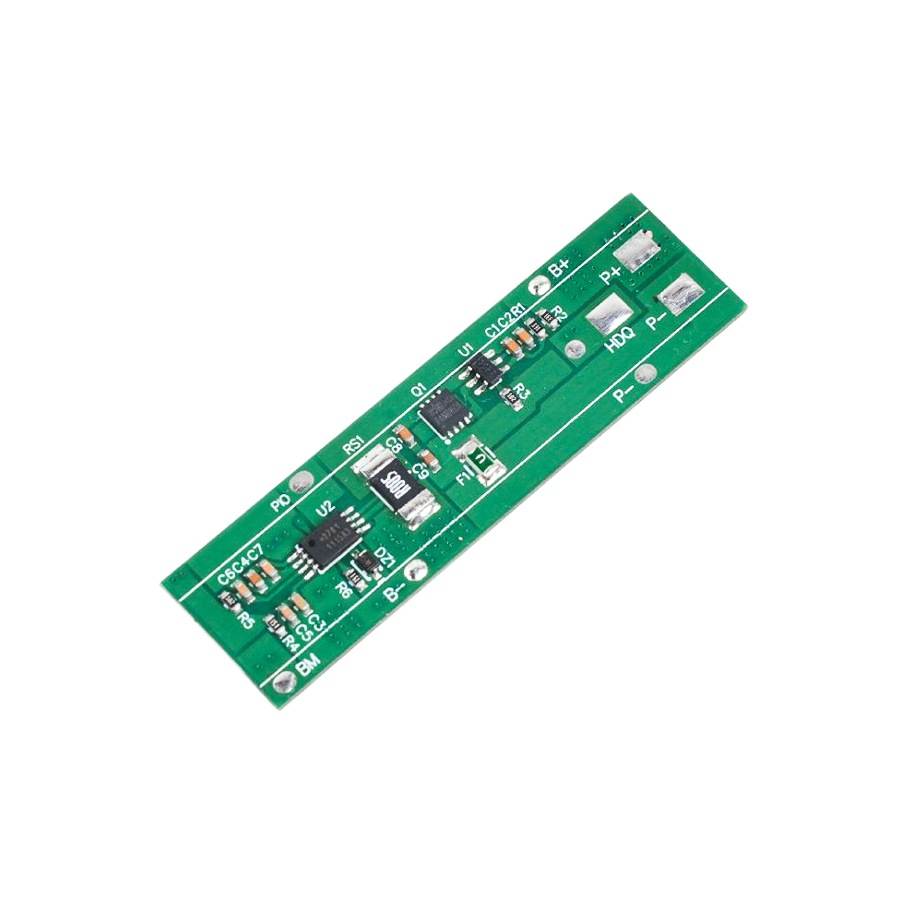

* Serial number: 2S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.700V±0.025V

* OCD1 Over Current Discharge: 4.50A±0.5A

 * OCD1 Over Current Discharge: 7.0A±0.5A

* OCC Over Current Charge: 3.0A±0.5A

* Discharging Temperature:  /

* Charge Temperature:  /

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): 55*15*1.98mm
