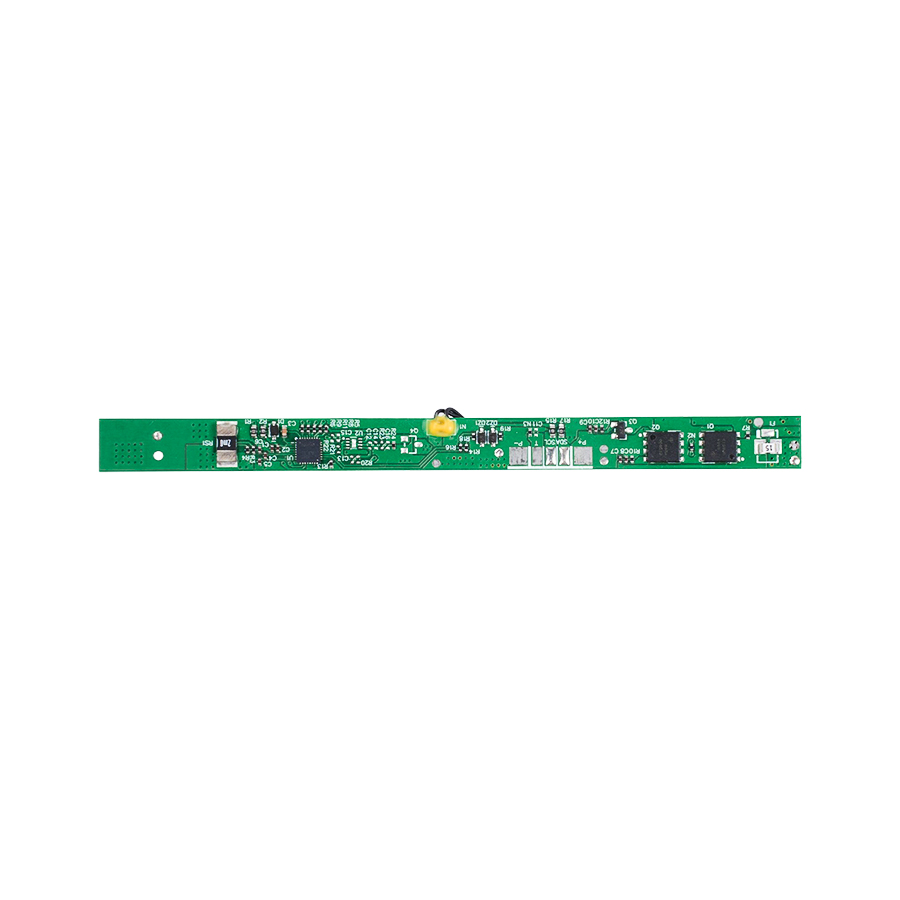

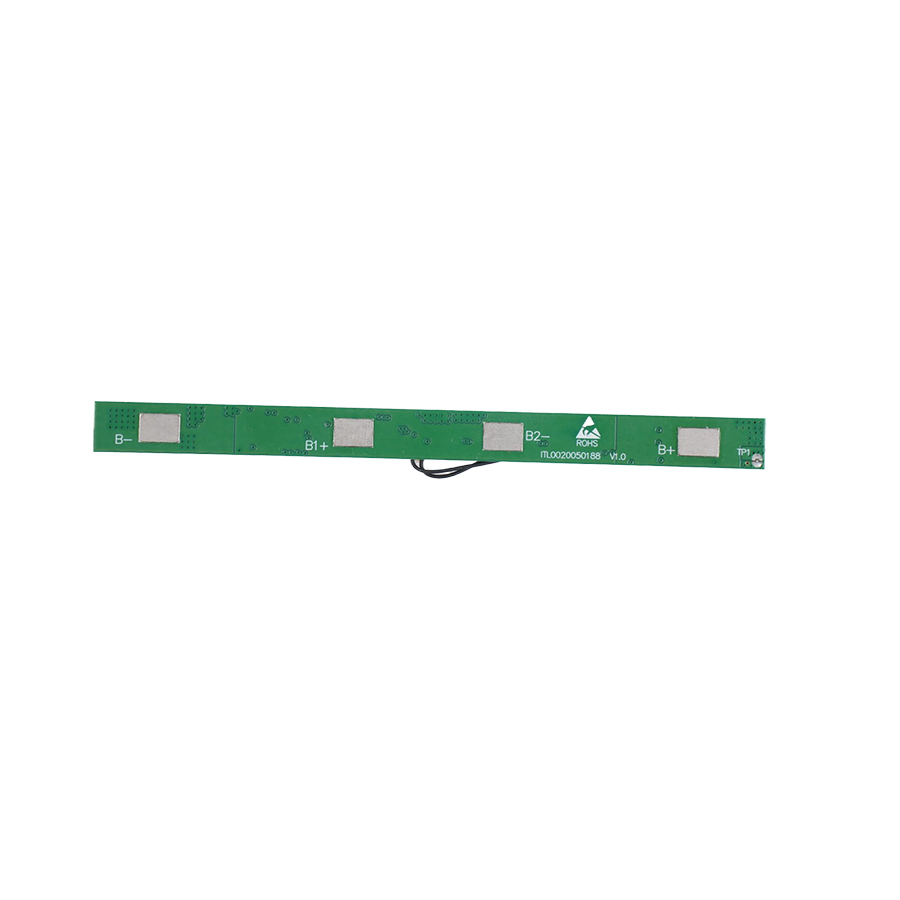

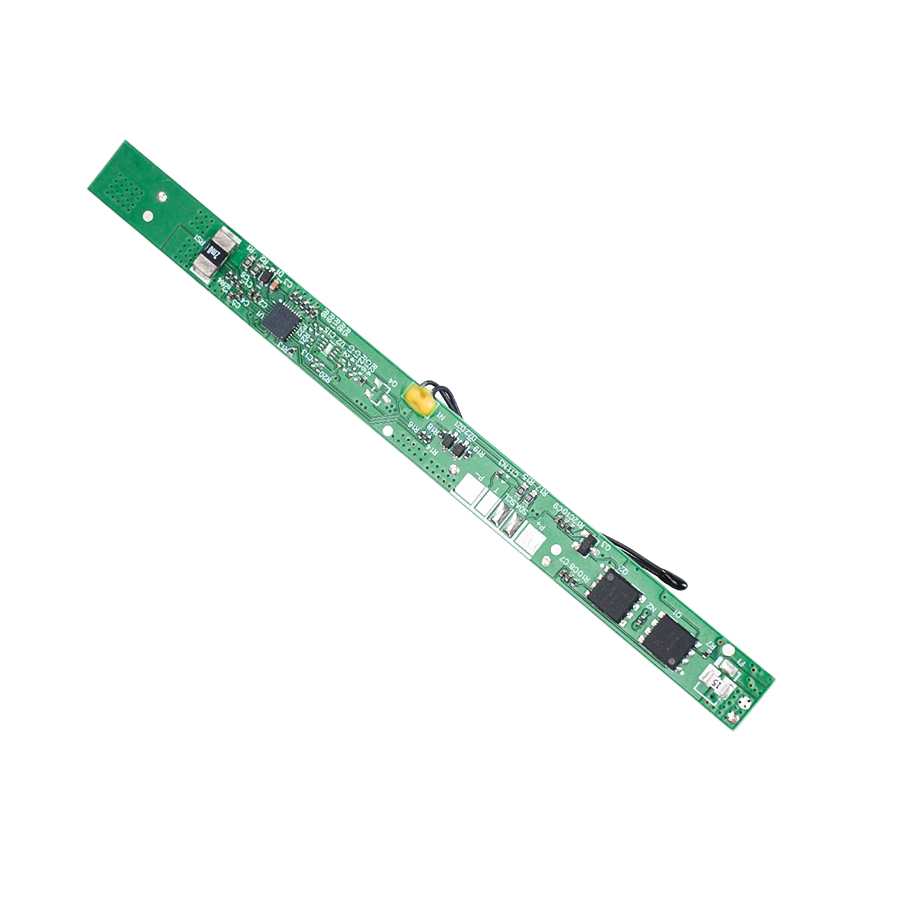

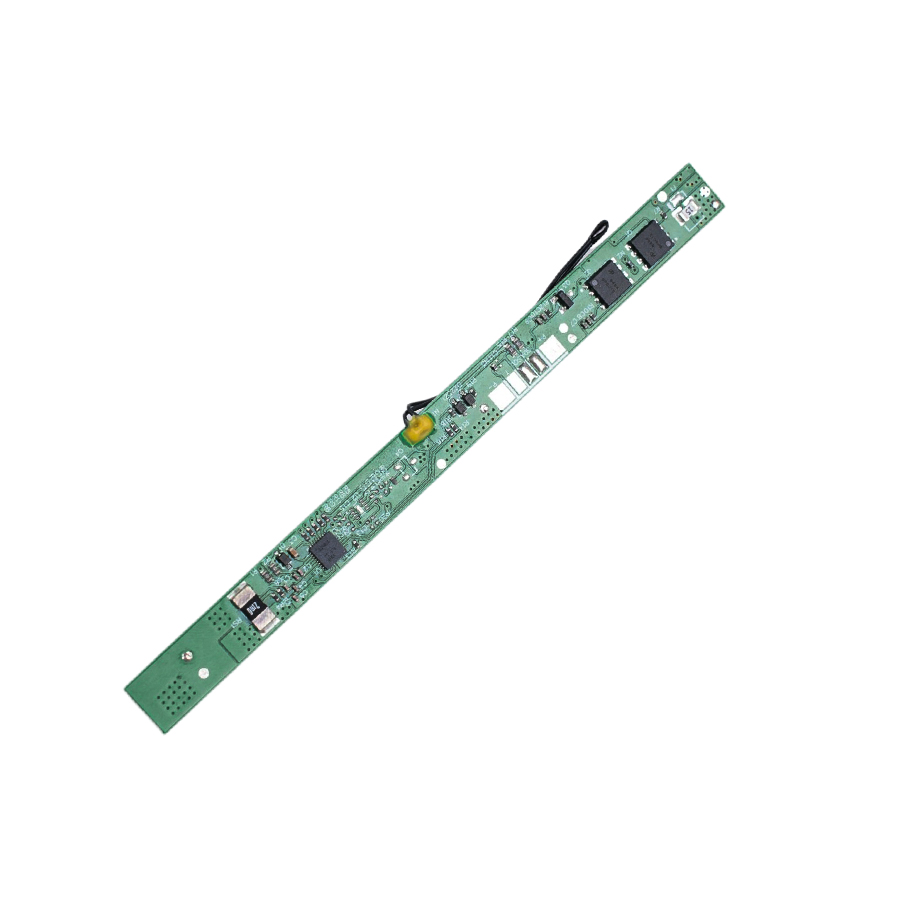

* Product solution Model number: BAKTH-ITL0020050188-01

* Product Solution: BQ4050+AON6354

* Compatibleinterface: SMBUS

* Battery Type: Li-ION

* Serial number: 2S lithium battery protection board

* Over charge detection voltage(Cell):  4.450V±0.025V

* Over Discharge Detection Voltage(Cell): 3.000V±0.025V

* OCD1 Over Current Discharge: 7.0A±0.5A

* OCD2 Over Current Discharge: 9.0A±0.5A

* OCC1 Over Current Charge: 9.0A±0.5A

* OCC2 Over Current Charge: 10.0A±0.5A

* Discharging Temperature:  -16℃~64℃

* Charge Temperature:  -4℃~54℃

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): 117.5*9*2.62mm
