* Product solution Model number: BAKTH-ITL0020050192-01

* Product Solution: BQ40Z50+CJAB35N03S

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

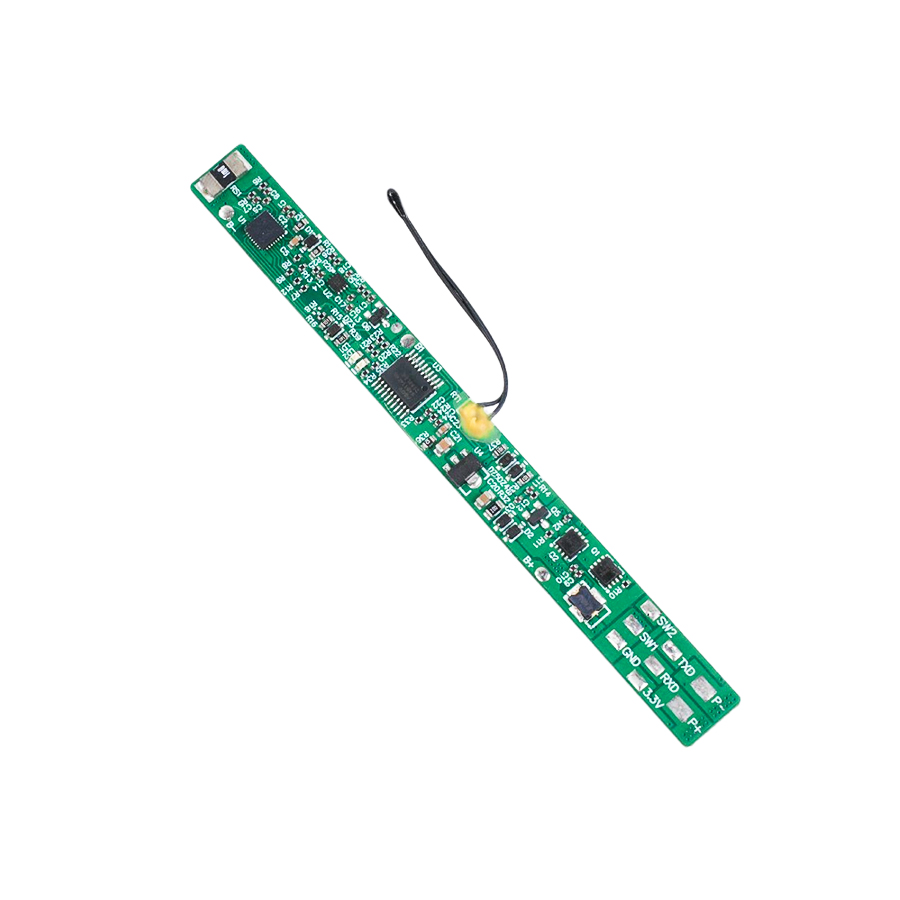

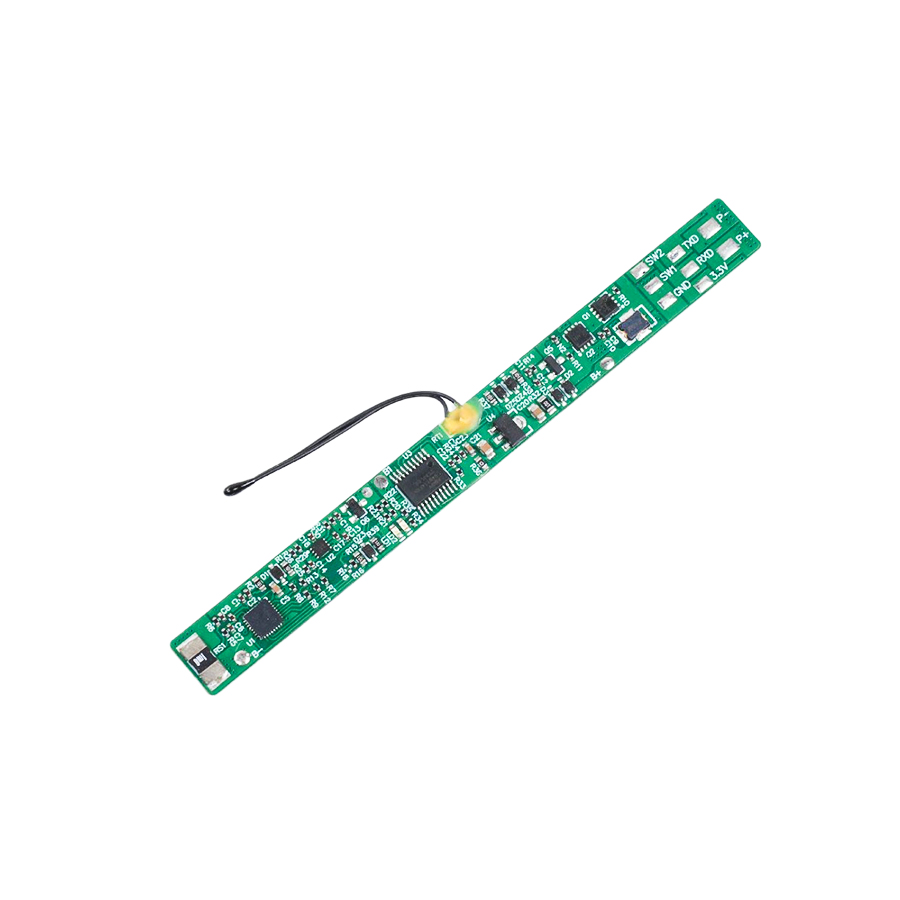

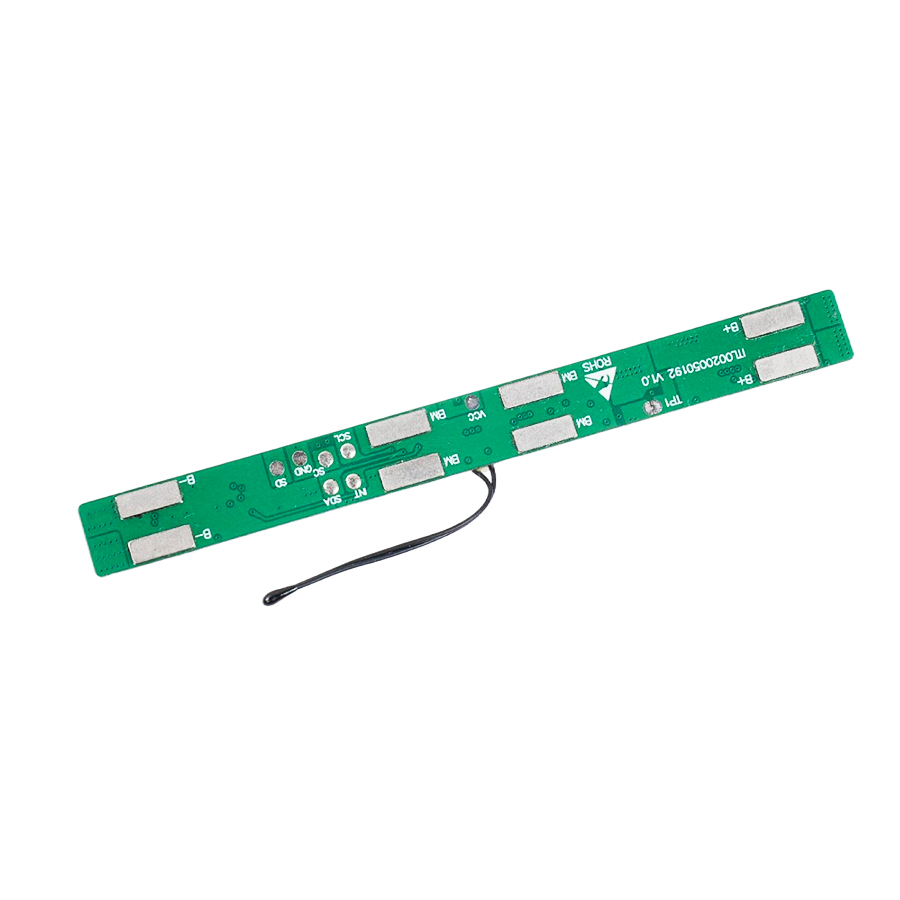

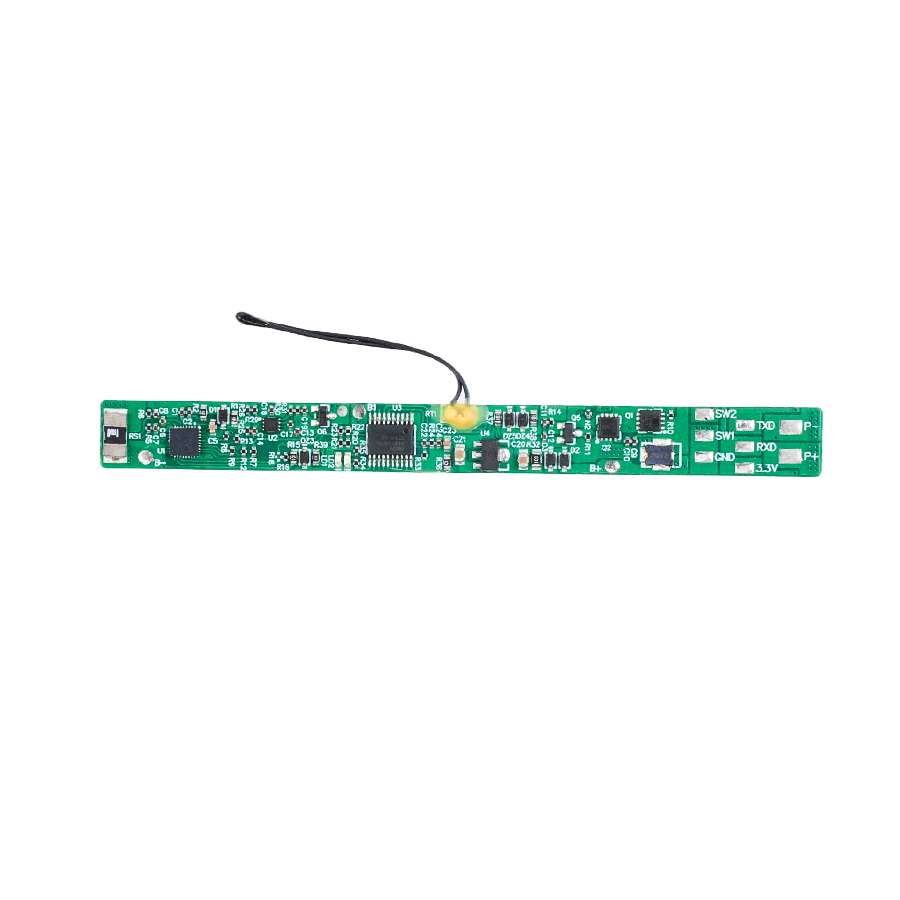

* Serial number: 2S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

*2st Level charge detection voltage:  4.450V±0.050V

* Over Discharge Detection Voltage(Cell): 3.000V±0.025V

* OCD1 Over Current Discharge: 15.0A±0.5A

* OCD2 Over Current Discharge: 18.0A±0.5A

* OCC1 Over Current Charge: 6.0A±0.5A

* OCC2 Over Current Charge: 8.0A±0.5A

* Discharging Temperature:  -16℃~69℃

* Charge Temperature:  -4℃~54℃

* Max.Discharge Current: 3A

* Max.charge Current: 4A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 102*10.0*2.47mm
