* Product solution Model number: BAKTH-ITL0030050199-01

* Product Solution: BQ4050+CW1244DLKS

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

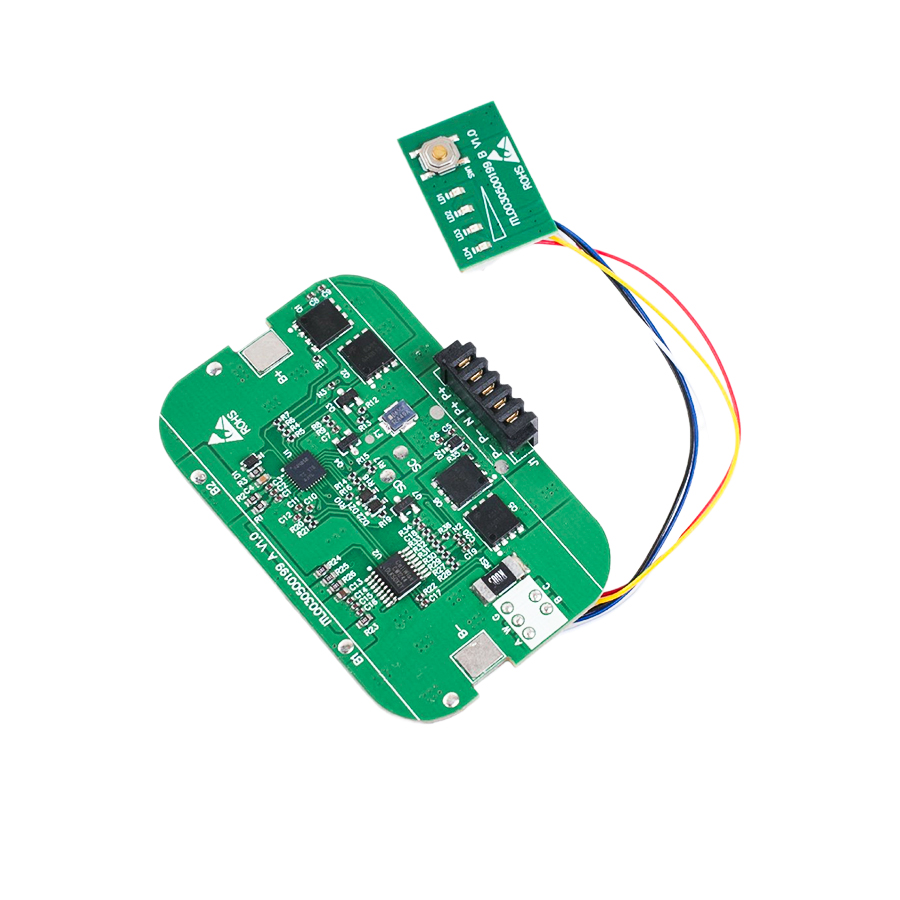

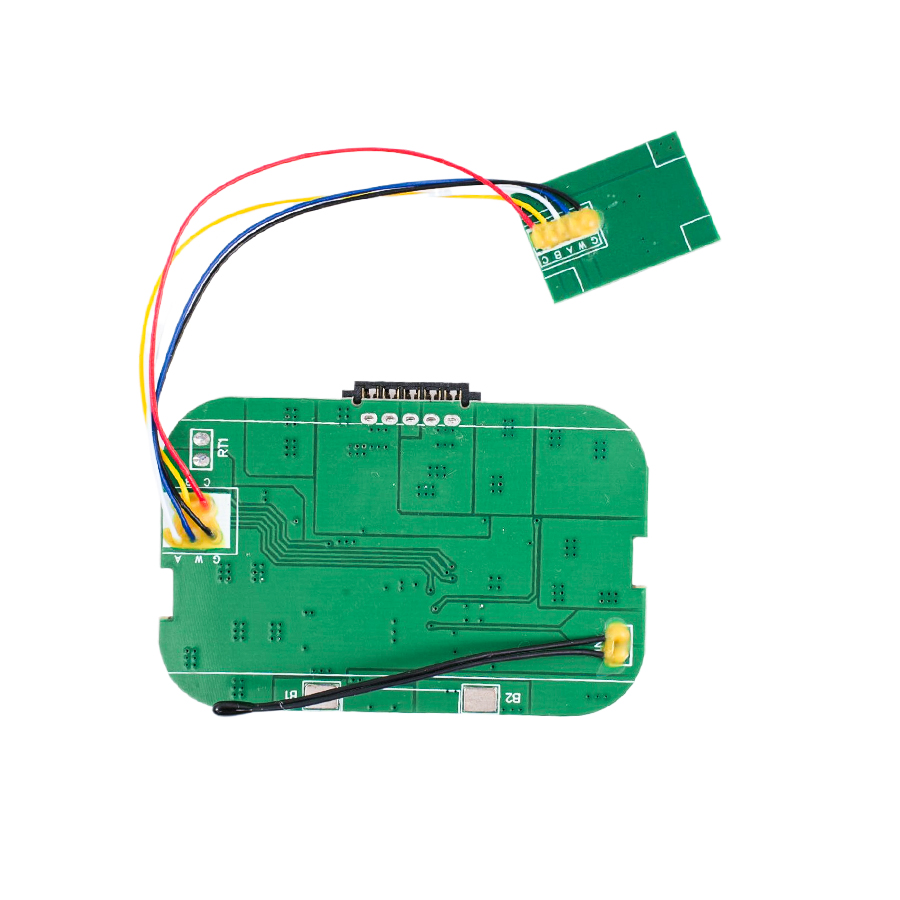

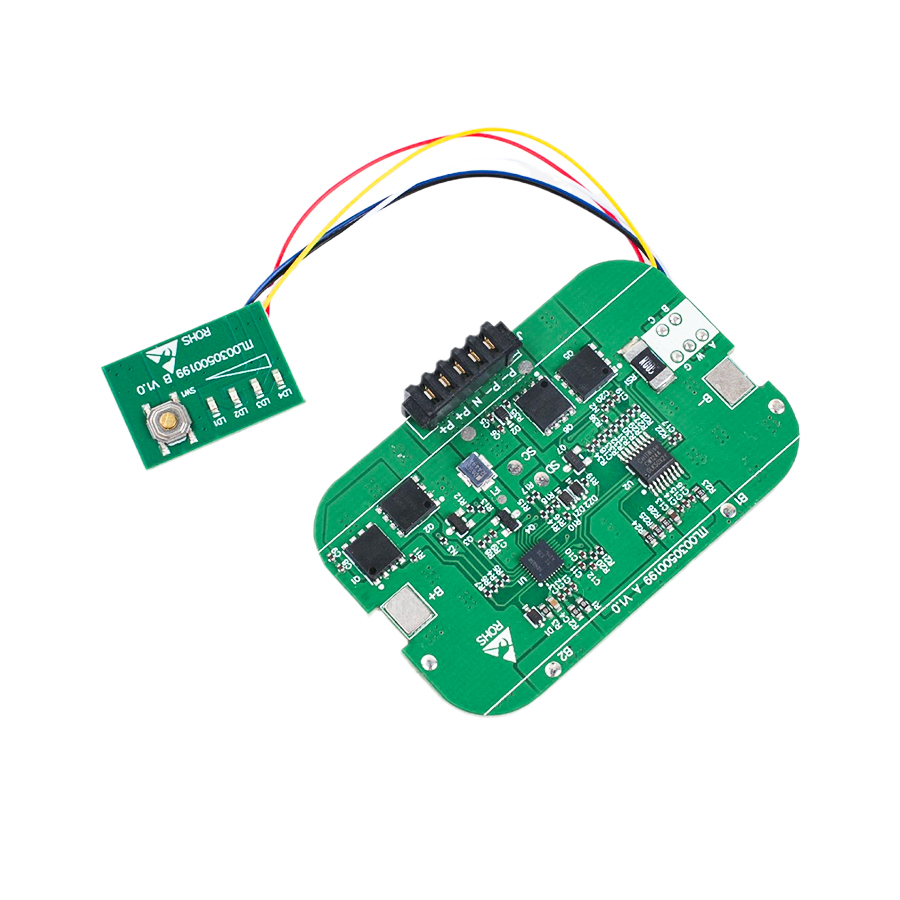

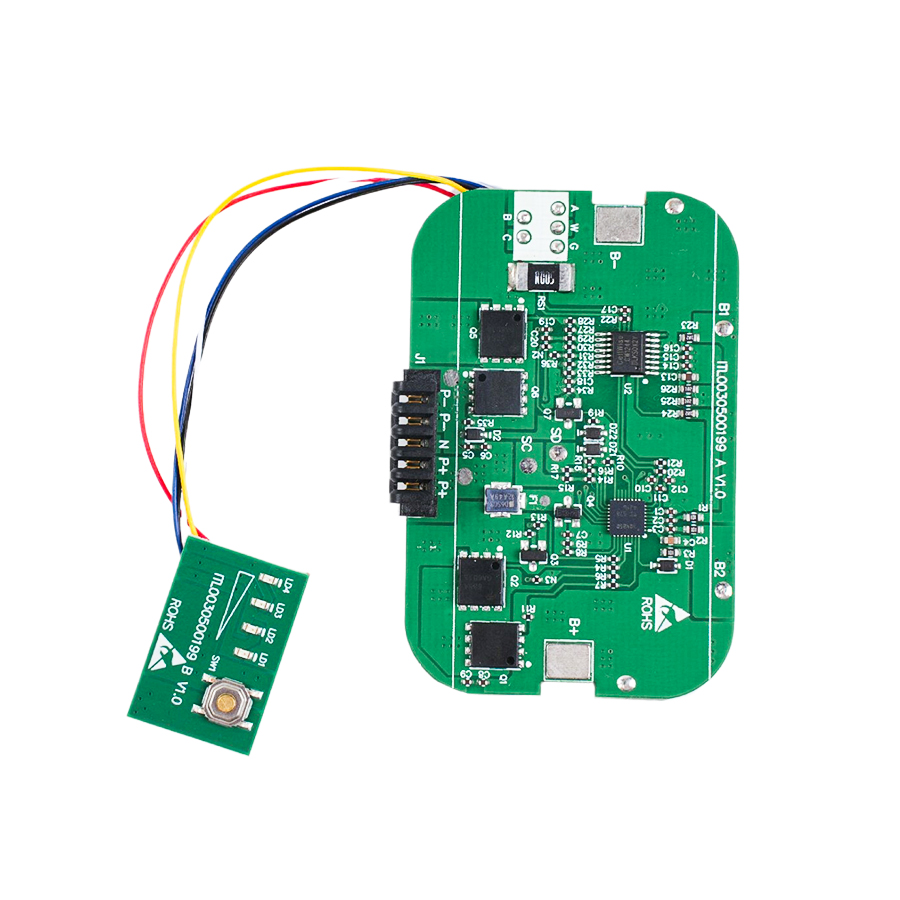

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.230V±0.025V

* Over Discharge Detection Voltage(Cell): 2.800V±0.025V

* OCD1 Over Current Discharge: 6.0A±0.5A

* OCD2 Over Current Discharge: 7.0A±0.5A

* OCC1 Over Current Charge: 3.0A±0.5A

* OCC1 Over Current Charge: 4.0A±0.5A

* Discharging Temperature:  -16℃~69℃

* Charge Temperature:  -4℃~49℃

* Max.Discharge Current: 3A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): A板59*38.2*8.96mm B板22*15*2.8mm
