* Product solution Model number: BAKTH-ITL0030100207-01

* Product Solution: BQ40Z50+AP30H80G

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

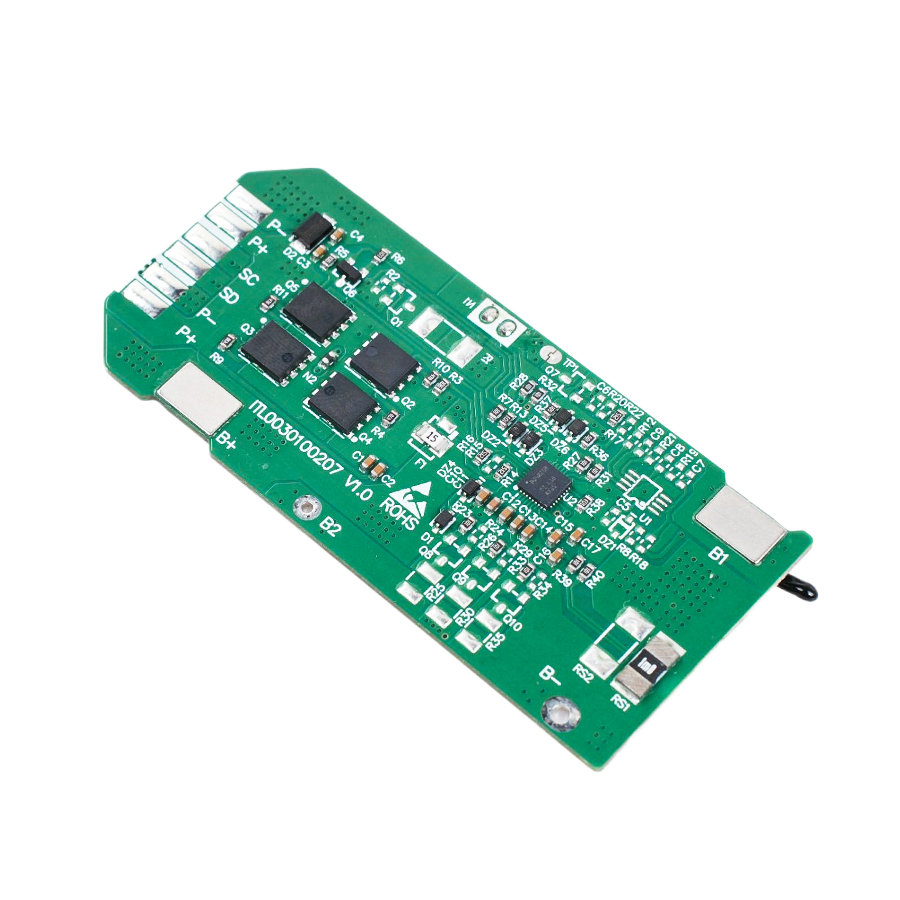

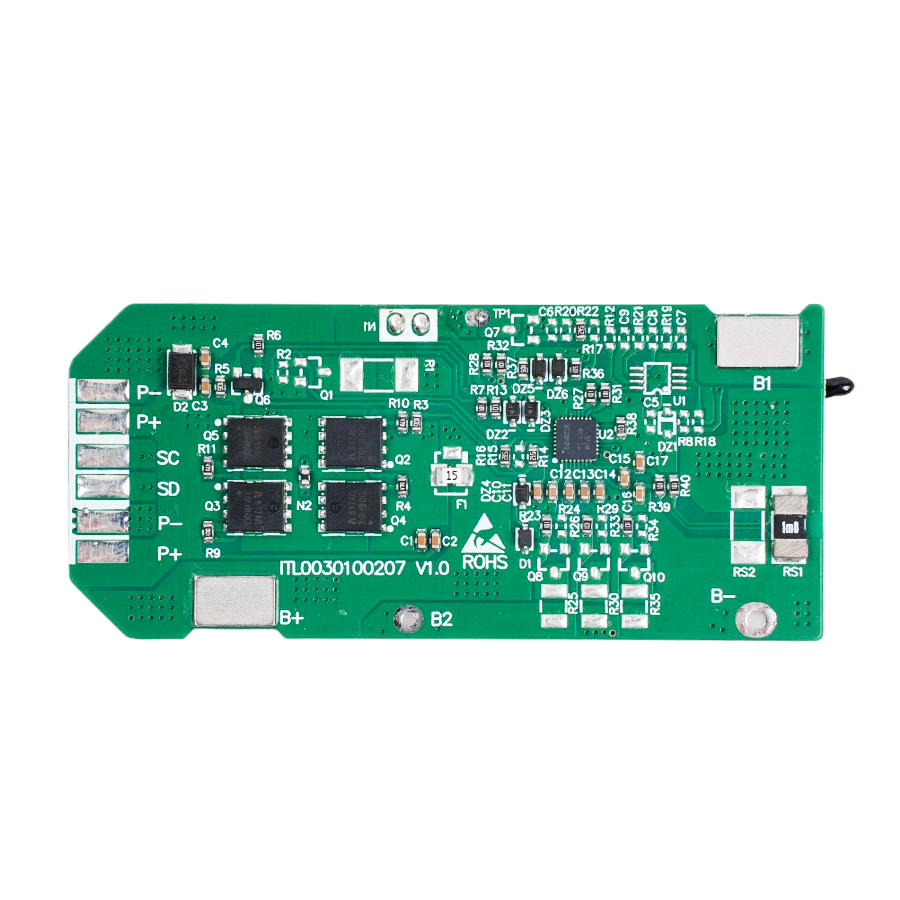

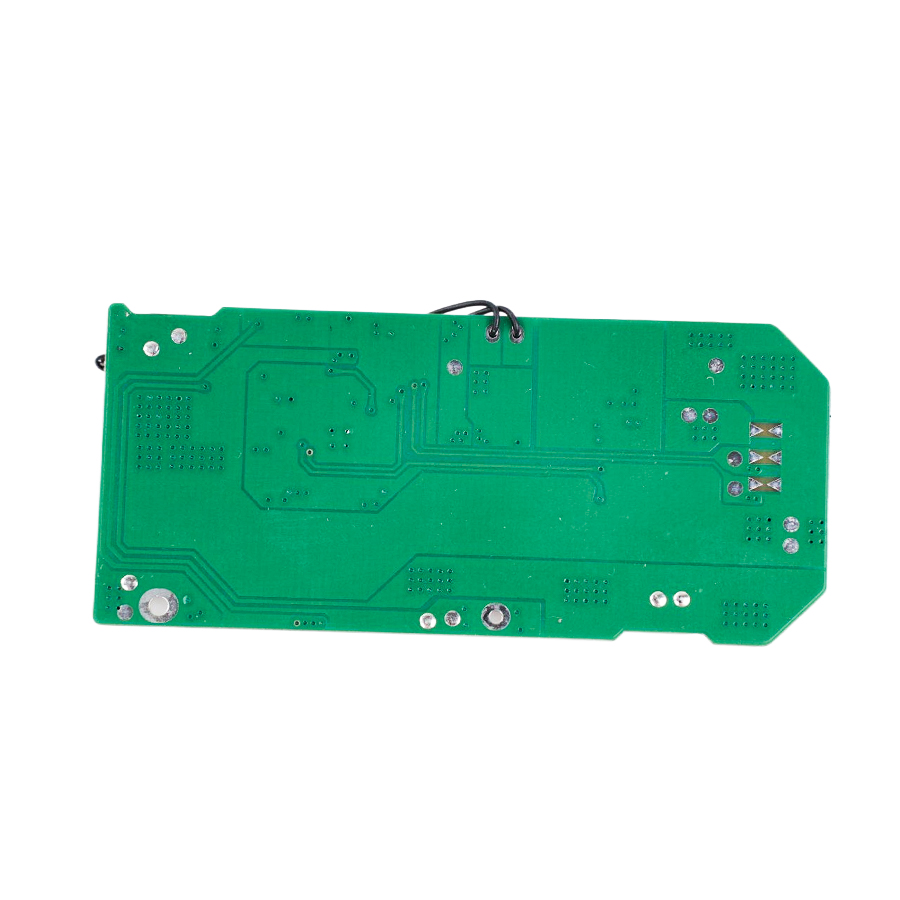

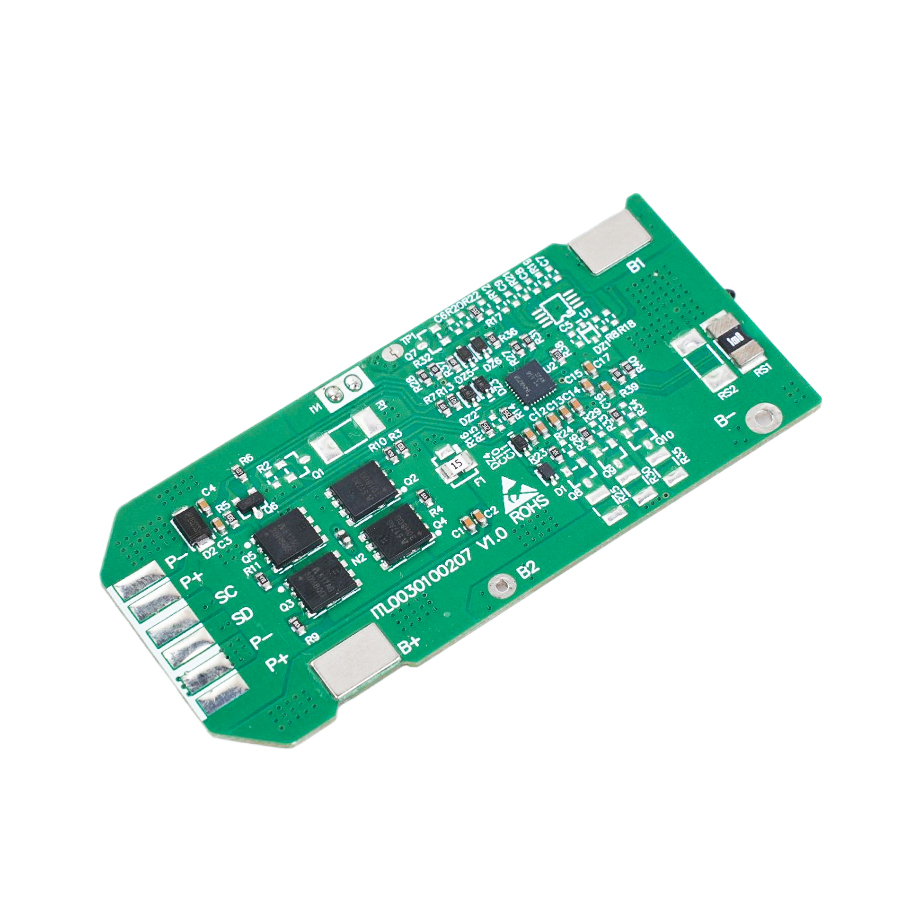

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* OCD1 Over Current Discharge: 15.0A±0.5A

* OCD2 Over Current Discharge: 18.0A±0.5A

* OCC1 Over Current Charge: 6.0A±0.5A

* OCC2 Over Current Charge: 8.0A±0.5A

* Discharging Temperature:  -16℃~64℃

* Charge Temperature:  -4℃~59℃

* Max.Discharge Current: 5A

* Max.charge Current: 7A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): 75*33.5*2.31mm
