* Product solution Model number: BAKTH-ITL0040100204-01

* Product Solution: S-8254AAVFT+AO4407C

* Compatibleinterface: Hardware board

* Battery Type: LiLe-PO4

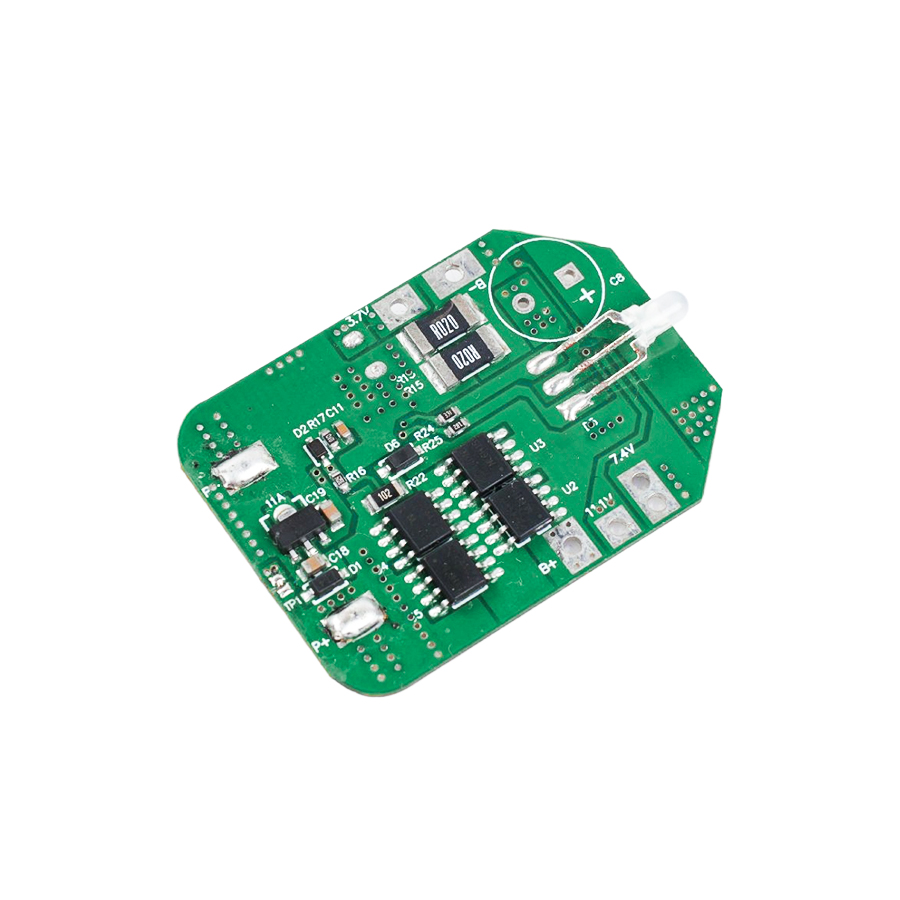

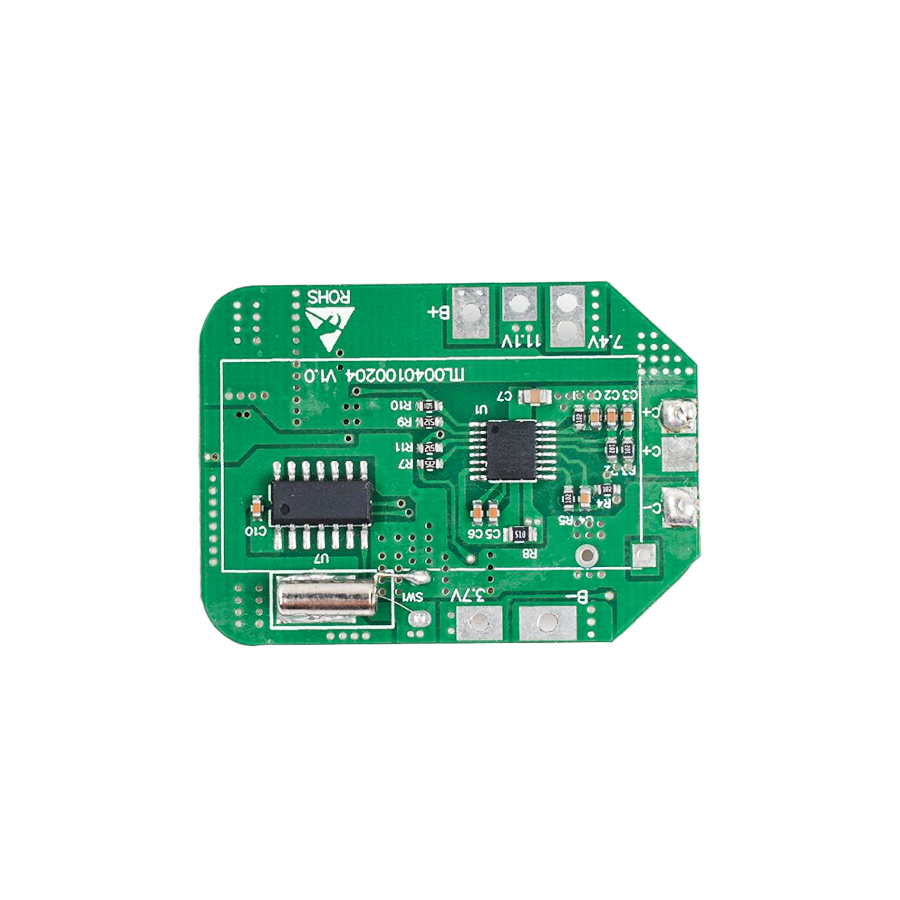

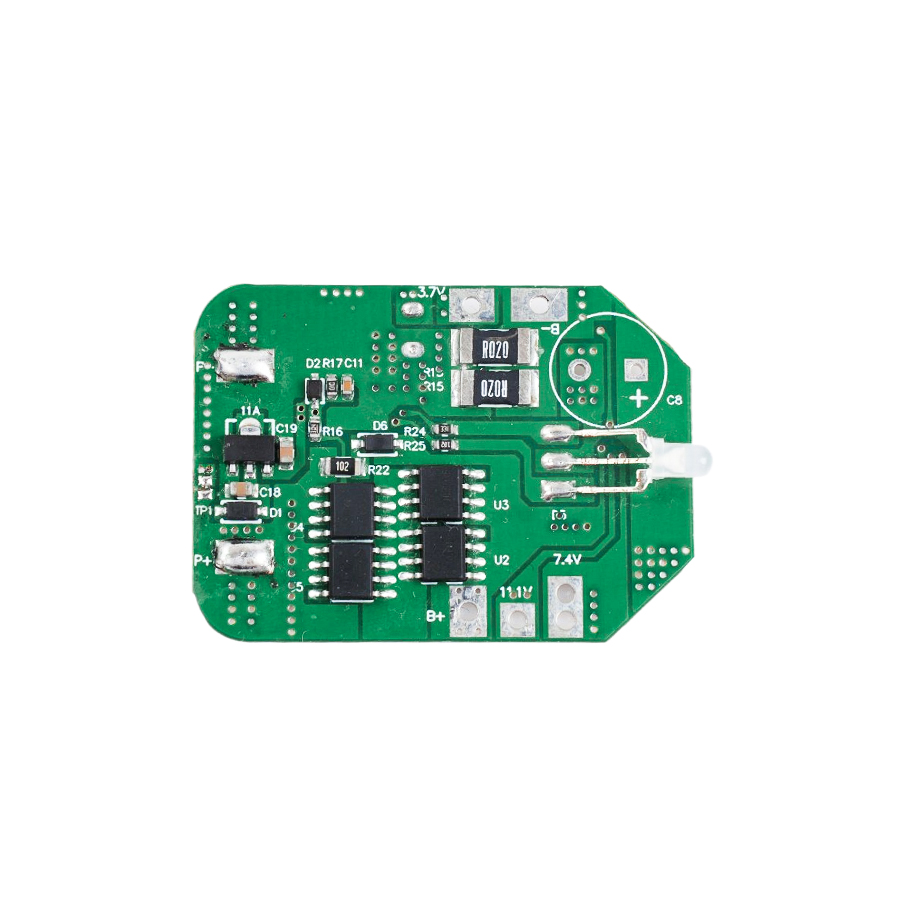

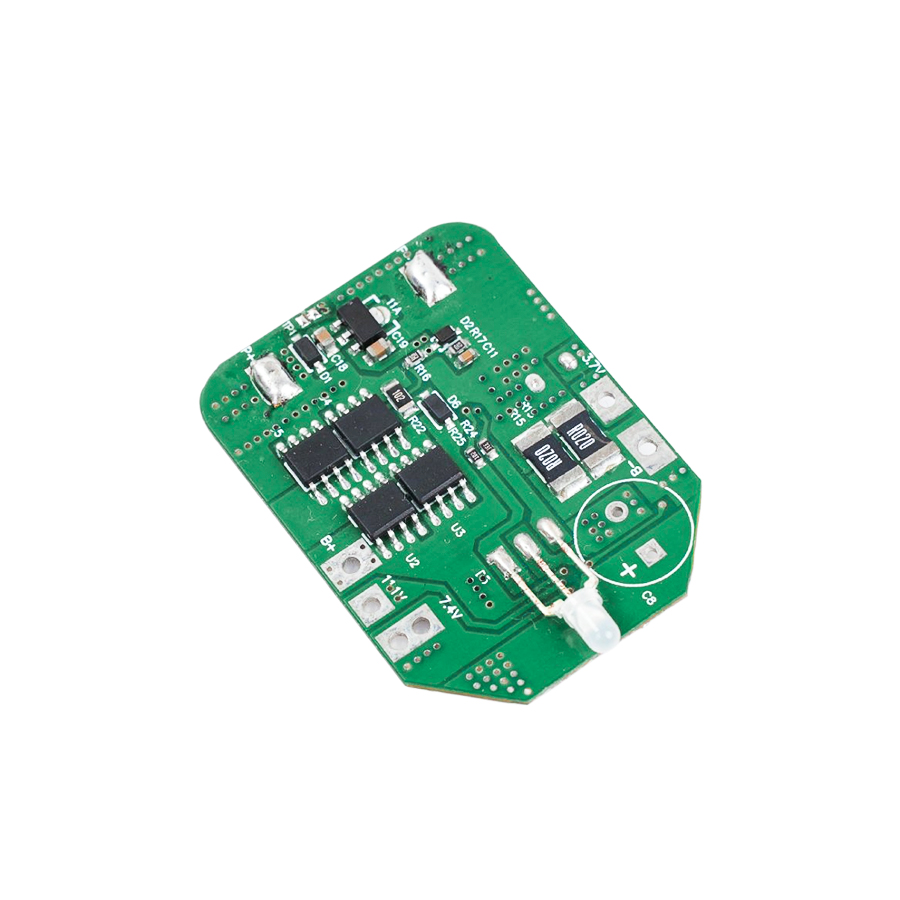

* Serial number: 4S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.700V±0.080V

* OCD1 Over Current Discharge: 20A±5A

* Discharging Temperature:  /

* Charge Temperature:  /

* Max.Discharge Current: 5A

* Max.charge Current: 8A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): 44*32*4.88mm
