* Product solution Model number: BAKTH-ITL0080100198-01

* Product Solution: BQ78350+LR013N10SM10

* Compatibleinterface: SMBUS

* Battery Type: LiFe-PO4

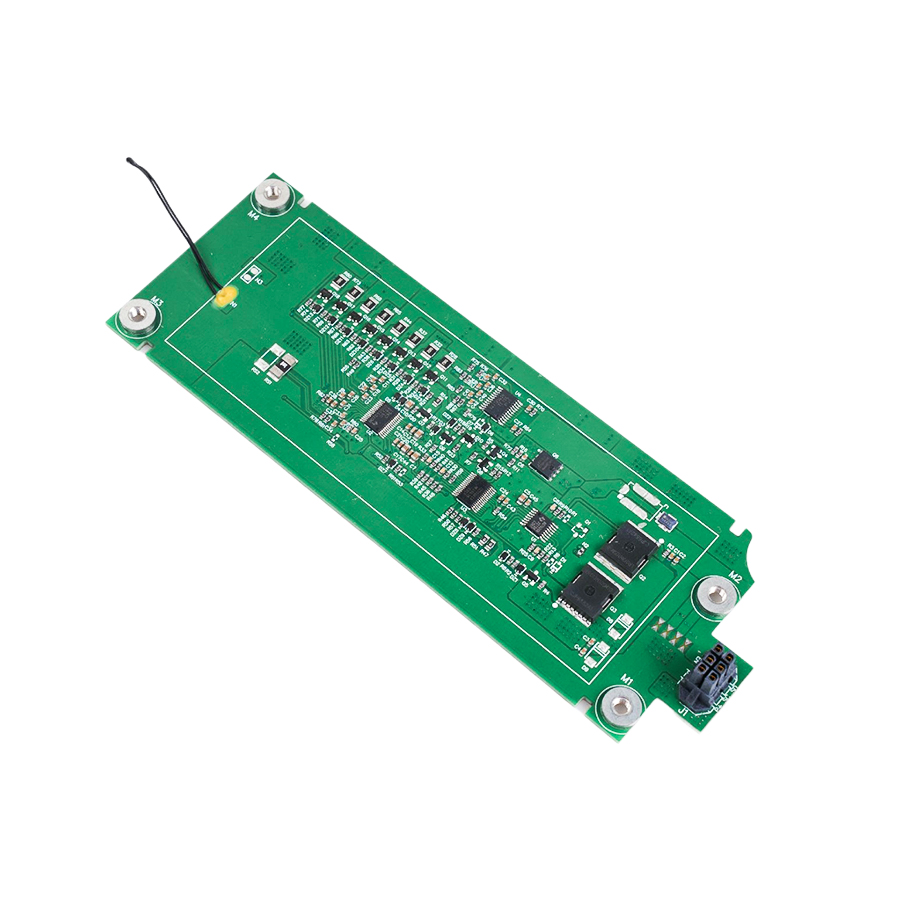

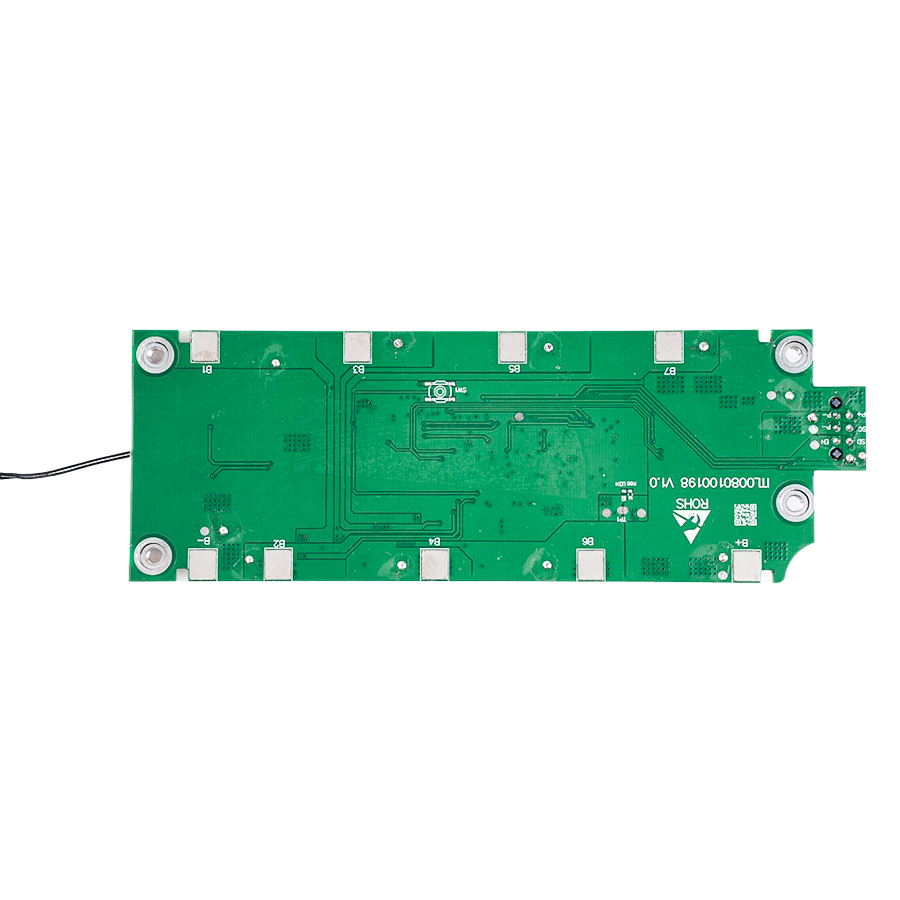

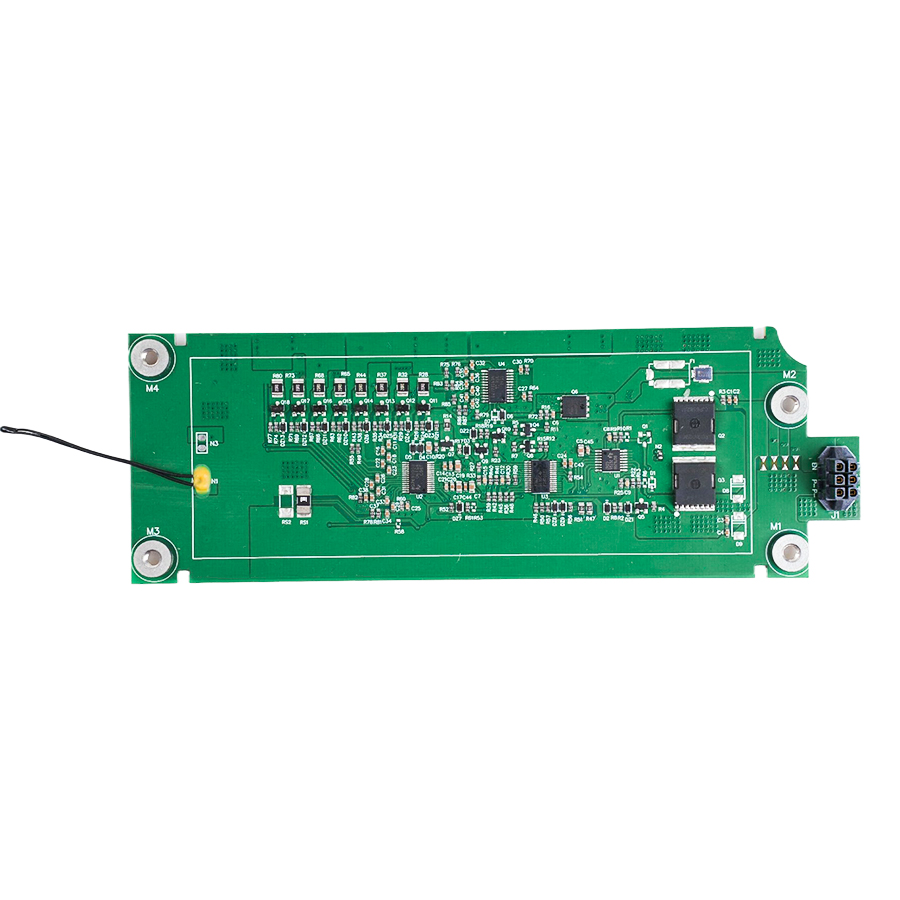

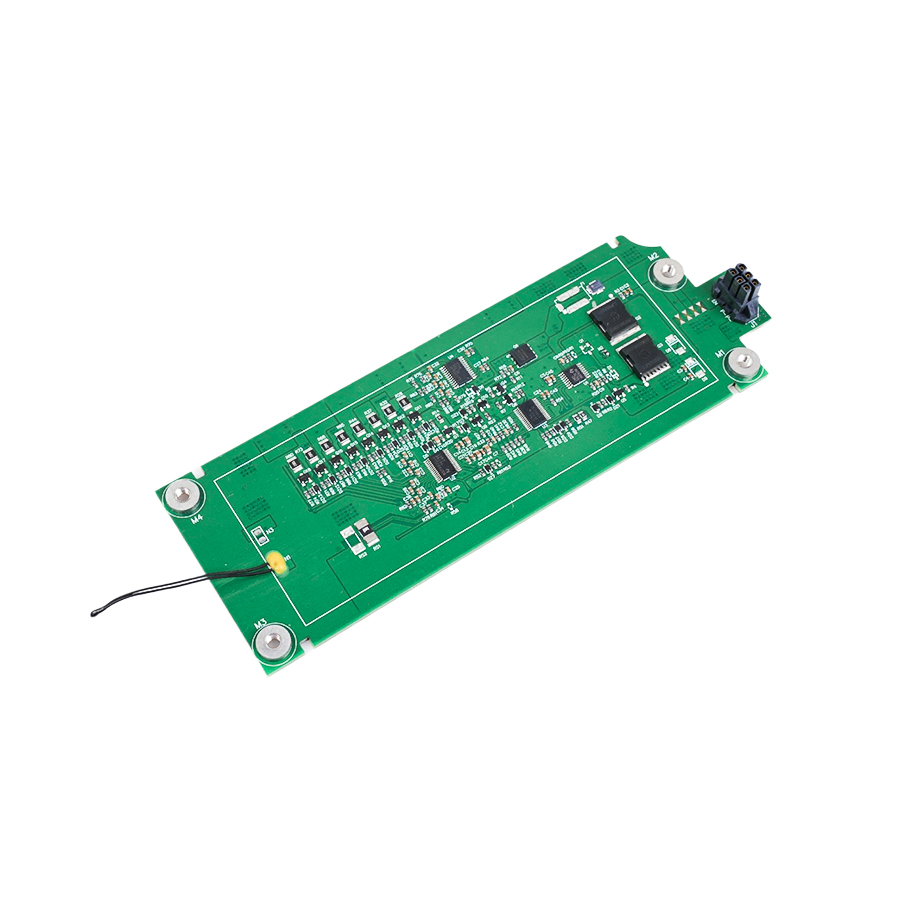

* Serial number: 8S lithium battery protection board

* Over charge detection voltage(Cell):  3.650V±0.025V

* 2st Level charge detection voltage: 3.900V±0.050V

* Over Discharge Detection Voltage(Cell): 2.300V±0.025V

* Over Current Discharge: 7.0A±1.0A

* Over Current Charge: 4.0A±0.5A

* Discharging Temperature:  -17℃~83℃

* Charge Temperature:  -3℃~68℃

* Max.Discharge Current: 3A

* Max.charge Current: 4A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 173.5*60*4.11mm
