* Product solution Model number: BAKTH-ITL0080200185-01

* Product Solution: SH3676010BX+GPT013N10NTP

* Compatibleinterface: Hardware board

* Battery Type: Li-ion

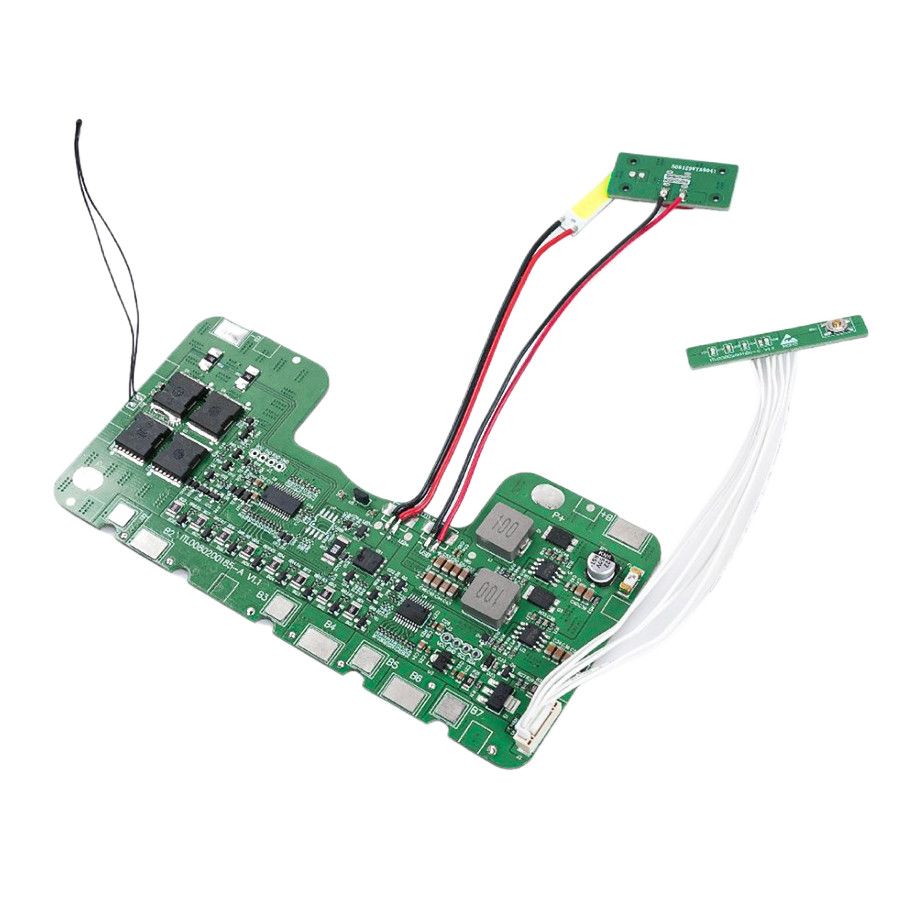

* Serial number: 8S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.030V

* Over Discharge Detection Voltage(Cell): 2.500V±0.030V

* Over Current Discharge: 42A-55A

* 2st Level current Discharge: 90A-110A

* Over Current Charge: 8A-13A

* Discharging Temperature:  -41℃~79℃

* Charge Temperature:  -3℃~59℃

* Max.Discharge Current: 5A

* Max.charge Current: 25A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): 137*66.5*62.0mm
