Table of Contents

1. Safety First: Tools & Precautions
2. How to Test Voltage Correctly (The Most Important Step)
3. Why Is My LiFePO4 Battery Reading 0V? (BMS Protection Triggers)

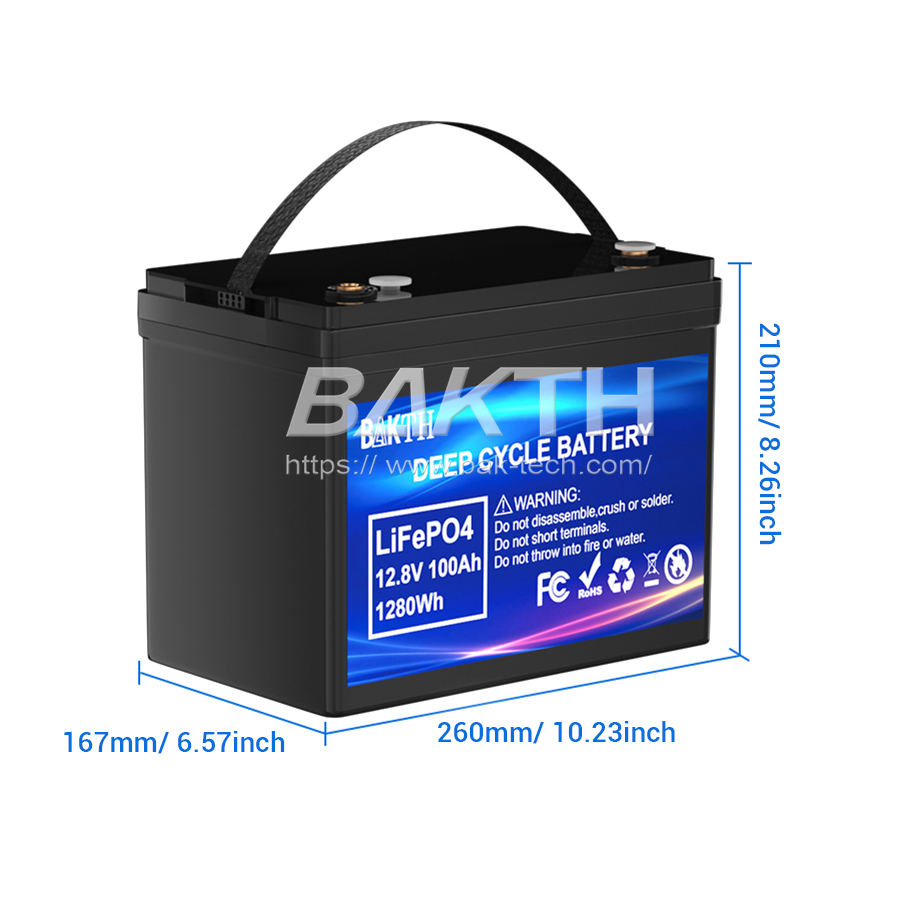

4. How to Wake Up a 0V “Dead” 12V 100Ah LiFePO4 Battery
5. How to Fix LiFePO4 Battery Not Charging
6. How to Soft Reset the BMS After Low Voltage Cutoff
7. How to Prevent 0V & BMS Trips Long-Term
8. Frequently Asked Questions (FAQ)

1. Safety First: Tools & Precautions

Before troubleshooting, stay safe and prepare simple tools.

Tools You Need

• Digital multimeter (DC voltage)
• LiFePO4-compatible charger
• Insulated gloves and eye protection
• Wrench for terminal bolts
• Contact cleaner & clean cloth
• Optional: bench power supply (current-limited)

Safety Rules

• Remove jewelry (rings, watches, necklaces).
• Do not touch both terminals with metal tools at the same time.
• Work on a dry, well-ventilated surface.
• Stop immediately if the battery swells, heats up, vents, or smells burnt.
• Never charge LiFePO4 below 0°C (32°F) — it causes permanent lithium plating.

2. How to Test Voltage Correctly

You must measure voltage at the battery terminals — not on the inverter screen or a power display.

How to Measure

1. Set multimeter to DC Volts.
2. Red probe → positive (+)
3. Black probe → negative (–)
4. Record the reading.

12V LiFePO4 Voltage Reference Chart

Test Voltage Under Load

A battery can look healthy at rest but fail under load.
   - Turn on inverter, pump, or heater.
   - If voltage drops sharply, you have loose terminals, thin cables, or BMS overcurrent protection.

3. Why Is My LiFePO4 Battery Reading 0V?

The BMS shuts off output to protect the cells. These are the most common triggers:

Common BMS Protections

• Low Voltage Cutoff (LVC) – battery died completely
• Overvoltage – charger voltage too high
• Overcurrent / Short Circuit – surge or wiring fault
• Temperature Protection – too cold to charge, too hot to run

Fast Symptom Diagnosis

4. How to Wake Up a 0V “Dead” 12V 100Ah LiFePO4 Battery

A 0V reading usually means the BMS is in sleep mode. Here’s how to wake it safely.

Step 1: Check Basics

• Tighten battery terminals
• Check fuses and disconnect switches
• Confirm charger polarity

Step 2: Safe Wake-Up Method (Recommended)

1. Disconnect all loads (inverter, lights, appliances).
2. Connect a LiFePO4-compatible charger directly to the terminals.
3. Turn on the charger.
4. Wait 1–5 minutes.
5. The BMS will wake and voltage will rise.

Step 3: Bench Power Supply (Advanced)

If a normal charger doesn’t work:

• Set voltage: 13.8V – 14.4V
• Current limit: 2A–5A (very low)
• If the battery gets hot, STOP.

If Nothing Works

• Warm the battery above 0°C (32°F)
• Try a different LiFePO4 charger
• Recheck connections at the battery posts

5. How to Fix “LiFePO4 Battery Not Charging”

If your battery won’t take a charge, the issue is usually settings, temperature, or wiring.

Check Charger Voltage

Test the charger clips directly.
   - No voltage = faulty charger
   - Voltage present but 0A = BMS blocked charging

Correct Charging Settings for 12V LiFePO4

• Absorption: 14.2V – 14.6V
• Float: 13.5V (if needed)
• Equalize mode: OFF (never for LiFePO4)

Common Charging Issues

• Using lead-acid charger
• Cold battery (below 0°C) → BMS blocks charge
• Loose or corroded terminals
• Wrong voltage settings

6. How to Soft Reset the BMS

Most LiFePO4 BMS does NOT have a reset button. Use this soft reset method.

BMS Reset Steps

1. Disconnect all loads.
2. Unplug the charger.
3. Wait 2–5 minutes.
4. Reconnect the LiFePO4 charger.
5. Let voltage recover.
6. Reconnect loads one by one.

Fix the Root Cause

• If low voltage trips: reduce standby power use
• If overvoltage trips: lower charger voltage
• If cold trips: warm battery before charging

7. How to Prevent 0V & BMS Trips Long-Term

Follow these rules to avoid 0V failures:

• Keep charging voltage 14.2V–14.6V
• Never charge below 0°C
• Tighten terminals every 2–3 months
• Use correct cable size for inverters
• Store at 40–60% SOC (≈13.1V)
• Use a shunt battery monitor for accurate SOC

8. Frequently Asked Questions

Final Thoughts

A 0V reading on a 12V 100Ah LiFePO4 battery is almost always a BMS protection event, not a dead battery. With the steps in this guide, you can safely diagnose, wake, reset, and repair most issues at home.

For long life and reliability, always use a LiFePO4-compatible charger, avoid full discharges, and never charge in freezing temperatures.
